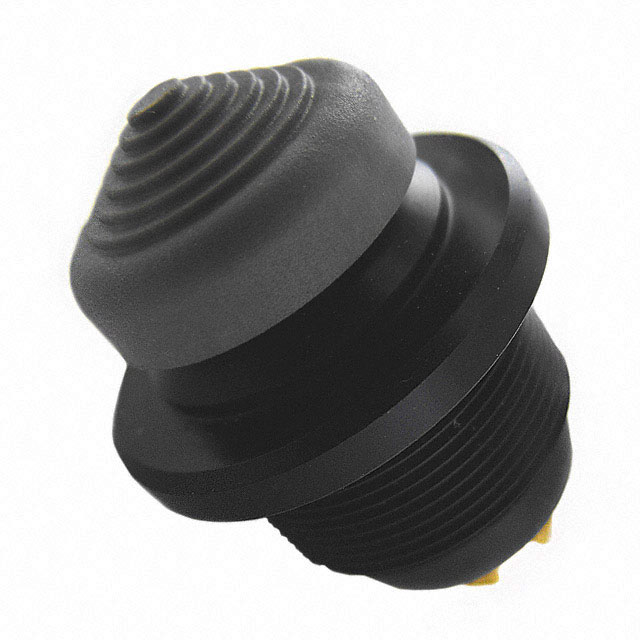

04J-AS-T11

04J-AS-T11

Part Number	04J-AS-T11
Manufacturer	Grayhill, Inc.
Other Part Numbers	04J-AS-T11-ND 2266-04J-AS-T11
Description	SWITCH NAVIGATION CASTLE 2A 115V
Detailed Description	Navigation Switch, 2 - Axis Digital (Mechanical Switch) Output
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Navigation Switches, Joystick
Manufacturer		Grayhill, Inc.
Series		04J
Packaging		Bulk
Part Status		Active
Features		Gray Actuator
Contact Finish		Gold
Current Rating (Amps)		2A (AC/DC)
Mounting Type		Panel Mount
Output		Digital (Mechanical Switch)
Type		Navigation Switch, 2 - Axis
Switch Function		4-Way Directional, Center Select
Operating Temperature		-55°C ~ 85°C
Termination Style		Solder Lug
Actuator Type		Castle
Ingress Protection		IP68 - Dust Tight, Waterproof
Contact Material		Nickel
Voltage Rating - AC		115 V
Voltage Rating - DC		28 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		04J-AS-T11
HTML Datasheet		04J Series Datasheet

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9065
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 7

Can ship immediately.
