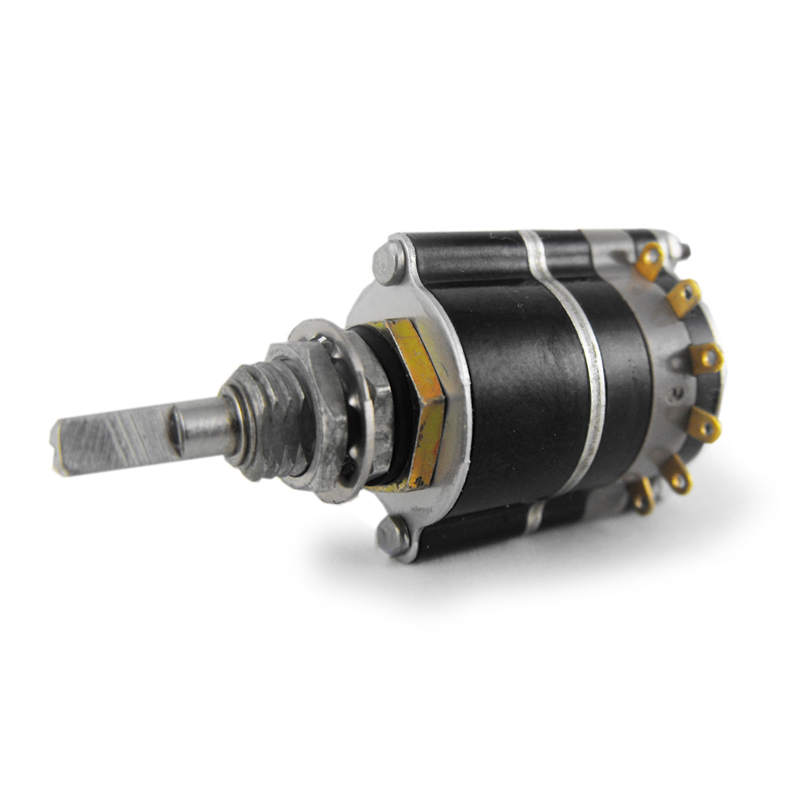

09M30-06-3-03N

09M30-06-3-03N

Part Number	09M30-06-3-03N
Manufacturer	Grayhill, Inc.
Other Part Numbers	09M30-06-3-03N-ND
Description	SWITCH ROTARY 3POS 250MA 115V
Detailed Description	Rotary Switch 3 Position 3P3T 250mA (AC/DC) 115 VAC Panel Mount

Product Attributes

Category		Switches Rotary Switches
Manufacturer		Grayhill, Inc.
Series		09
Packaging		Bulk
Part Status		Active
Contact Finish		Gold
Current Rating (Amps)		250mA (AC/DC)
Mounting Type		Panel Mount
Number of Positions		3
Termination Style		Solder Lug
Actuator Length		9.53mm
Actuator Type		Flatted (3.17mm Dia)
Angle of Throw		30°
Number of Decks		6
Number of Poles per Deck		3
Circuit per Deck		3P3T
Contact Material		Silver Alloy
Contact Timing		Non-Shorting (BBM)
Index Stops		Fixed
Depth Behind Panel		64.77mm
Voltage Rating - AC		115 V
Voltage Rating - DC		28 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		09M30-06-3-03N

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9020
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant

In Stock: 7

Can ship immediately.
