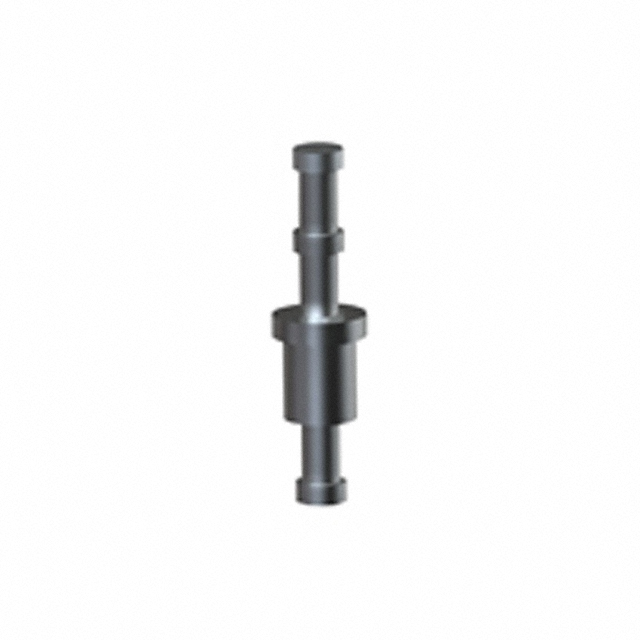

1575-3 _ Turret Connectors_Terminals_Connectors, Interconnects

Part Number	1575-3
Manufacturer	Keystone Electronics Corp.
Other Part Numbers	36-1575-3-ND 1575-3K-ND 1575-3K-NDR 1575-3K 36-1575-3
Description	TERM TURRET DOUBLE L=4.72MM TIN
Detailed Description	Terminal Turret Connector Double End 0.186" (4.72mm) Tin
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminals Turret Connectors
Manufacturer		Keystone Electronics Corp.
Series
Packaging		Bulk
Part Status		Active
Contact Finish		Tin
Mounting Type		Through Hole
Insulation		Non-Insulated
Board Thickness		0.093" (2.36mm)
Terminal Type		Double End
Flange Diameter		0.093" (2.36mm)
Length - Overall		0.381" (9.68mm)
Termination		Staking Flare
Length - Above Board		0.186" (4.72mm)
Mounting Hole Diameter		0.076" (1.93mm)
Contact Material		Brass
Diameter - Turret Head		0.050" (1.27mm)
Number of Turrets		Single, Double
Length - Below Flange		0.195" (4.95mm)
Staking Side OD		0.072" (1.83mm)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
