Part Number |
1825027-8
|
---|---|
Manufacturer | TE Connectivity ALCOSWITCH Switches |
Other Part Numbers |
450-1657-ND
450-1657
3937-1825027-8
FSMRA3JH
|
Description | SWITCH TACTILE SPST-NO 0.05A 24V |

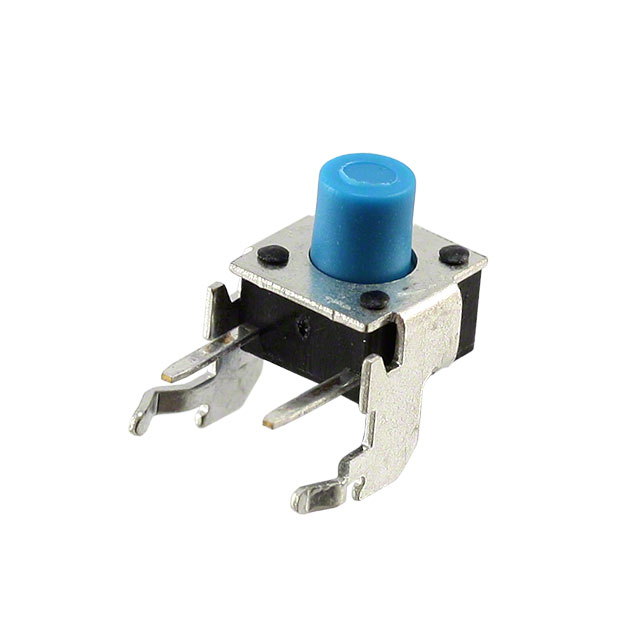

Detailed Description | Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle |
Manufacturer Standard Lead Time | 16 weeks |
Category | ||
---|---|---|
Manufacturer | TE Connectivity ALCOSWITCH Switches | |
Series |
FSMRAJ
|
|
Packaging |
Bulk
|
|
Part Status | Active | |
Mounting Type | Through Hole, Right Angle | |
Circuit | SPST-NO | |
Switch Function | Off-Mom | |
Operating Temperature | -20°C ~ 105°C | |
Termination Style | PC Pin | |
Illumination | Non-Illuminated | |
Contact Rating @ Voltage | 0.05A @ 24VDC | |
Actuator Type | Standard | |
Operating Force | 160gf | |
Outline | 7.11mm x 6.60mm | |
Actuator Orientation | Side Actuated | |
Actuator Length, Right Angle | 5.85mm |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | 1825027-8 | |
Environmental Information | FSMRA3JH Statement of Compliance | |
Featured Product | Tactile Switches | |
Featured Product | Drone Solutions | |
Featured Product | TE Connectivity Alcoswitch Switches | |
PCN Design/Specification | 1825027 Drawing Correction 21/Jul/2021 | |
PCN Design/Specification | y-1825027-y Document Clarification 23/JUL/2020 | |
HTML Datasheet | Switches Core Program Catalog | |
3D Drawings | 1825027-8.pdf | |
Product Drawings | 1825027 Drawing | |
Product Drawings | FSMRA3JH |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.50.9031 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | Vendor Undefined | |
RoHS Status | ROHS3 Compliant |
