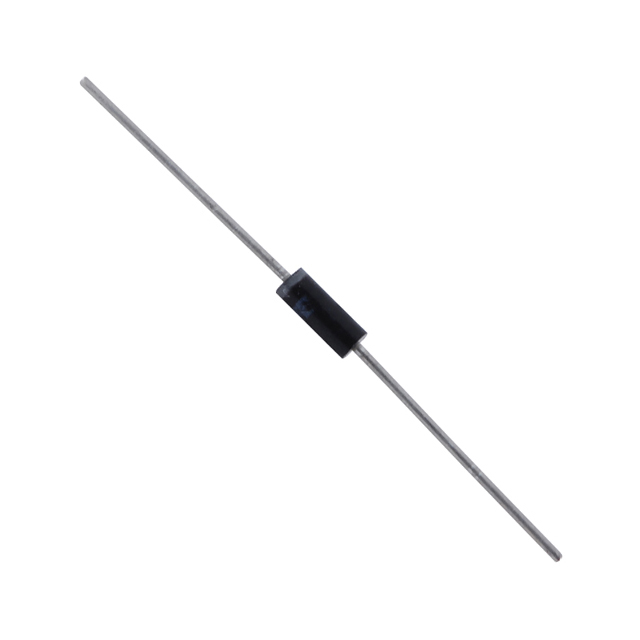

1N5360B

Part Number
1N5360B
Manufacturer NTE Electronics, Inc
Other Part Numbers
2368-1N5360B-ND
2368-1N5360B
Description DIODE ZENER 25V 5W AXIAL
Detailed Description Zener Diode 25 V 5 W ±5% Through Hole Axial
Datasheet Datasheet

Product Attributes

Category
Manufacturer NTE Electronics, Inc
Series
Packaging
Bag
Part Status Active
Tolerance ±5%
Package / Case T-18, Axial
Mounting Type Through Hole
Operating Temperature -65°C ~ 200°C
Voltage - Zener (Nom) (Vz) 25 V
Impedance (Max) (Zzt) 4 Ohms
Supplier Device Package Axial
Power - Max 5 W
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 1 A
Current - Reverse Leakage @ Vr 500 nA @ 19 V

Documents & Media

RESOURCE TYPE LINK
Datasheets 1N5360B
Environmental Information REACH Statement
Environmental Information RoHS Statement

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0050
REACH Status Vendor Undefined
RoHS Status ROHS3 Compliant
