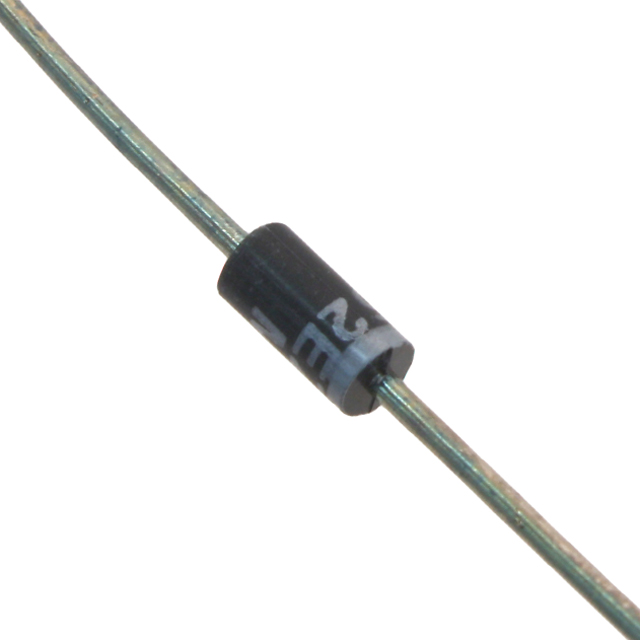

1N5360B

Part Number
1N5360B
Manufacturer Microsemi Corporation
Other Part Numbers
150-1N5360BTR-ND
150-1N5360BCT-ND
1N5360BMSCT-ND
150-1N5360BCT
150-1N5360BTR
1N5360BMSCT
1N5360BMSTR
1N5360BMSTR-ND
1N5360BMSTR-NDR
Description DIODE ZENER 25V 5W T18
Detailed Description Zener Diode 25 V 5 W ±5% Through Hole T-18
Datasheet Datasheet

Product Attributes

Category
Manufacturer Microsemi Corporation
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Tolerance ±5%
Package / Case T-18, Axial
Mounting Type Through Hole
Operating Temperature -65°C ~ 150°C
Voltage - Zener (Nom) (Vz) 25 V
Impedance (Max) (Zzt) 4 Ohms
Supplier Device Package T-18
Power - Max 5 W
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 1 A
Current - Reverse Leakage @ Vr 500 nA @ 18 V

Documents & Media

RESOURCE TYPE LINK
Datasheets 1N5360B
Environmental Information Microchip RoHS
Environmental Information Microchip REACH
Environmental Information Microchip CA Prop65
HTML Datasheet 1N5333B-1N5388B

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0050
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant

In Stock: 7

Can ship immediately.
