1SS404,H3F

Part Number
1SS404,H3F
Manufacturer Toshiba Electronic Devices and Storage Corporation
Other Part Numbers
1SS404H3FTR-ND
1SS404H3FCT-ND
1SS404H3FDKR-ND
1SS404TPH3FCT
1SS404H3FTR
1SS404TPH3FCT-ND
1SS404,H3F(B
1SS404TPH3FTR-ND
1SS404H3FDKR
1SS404(TPH3,F)
1SS404TPH3FDKR-ND
1SS404TPH3F
1SS404TPH3FDKR
1SS404TPH3FTR
1SS404H3FCT
1SS404,H3F(T
Description DIODE SCHOTTKY 20V 300MA USC
Detailed Description Diode 20 V 300mA Surface Mount USC
Manufacturer Standard Lead Time 20 weeks

Product Attributes

Category
Manufacturer Toshiba Electronic Devices and Storage Corporation
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active

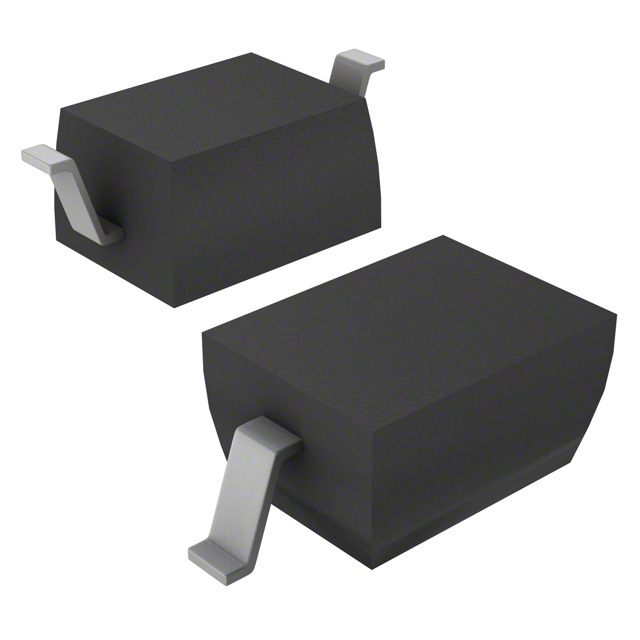

Package / Case SC-76, SOD-323
Mounting Type Surface Mount
Speed Fast Recovery =< 500ns, > 200mA (Io)
Technology Schottky
Capacitance @ Vr, F 46pF @ 0V, 1MHz
Current - Average Rectified (Io) 300mA
Supplier Device Package USC
Operating Temperature - Junction 125°C (Max)
Voltage - DC Reverse (Vr) (Max) 20 V
Voltage - Forward (Vf) (Max) @ If 450 mV @ 300 mA
Current - Reverse Leakage @ Vr 50 µA @ 20 V

Documents & Media

RESOURCE TYPE LINK
PCN Packaging Marking Chg 08/Feb/2016

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0070
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 32628

Can ship immediately.
