2-1825910-7

2-1825910-7

Part Number	2-1825910-7
Manufacturer	TE Connectivity ALCOSWITCH Switches
Other Part Numbers	450-1642-ND 450-1642 -FSM14JH-LSI 3937-2-1825910-7 -2-1825910-7-SI -FSM14JH-SI-ND FSM14JH -FSM14JH-SI 2266-FSM14JH
Description	SWITCH TACTILE SPST-NO 0.05A 24V
Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole
Manufacturer Standard Lead Time	16 weeks

Product Attributes

Category		Switches Tactile Switches
Manufacturer		TE Connectivity ALCOSWITCH Switches
Series		FSMJ
Packaging		Bulk
Part Status		Active
Mounting Type		Through Hole
Circuit		SPST-NO
Switch Function		Off-Mom
Operating Temperature		-35°C ~ 85°C
Termination Style		PC Pin
Illumination		Non-Illuminated
Contact Rating @ Voltage		0.05A @ 24VDC
Actuator Type		Standard
Operating Force		160gf
Outline		6.00mm x 6.00mm

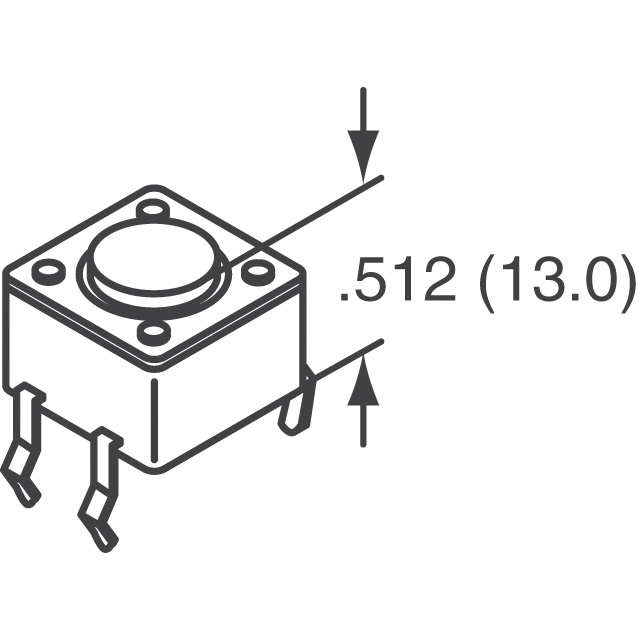

Actuator Height off PCB, Vertical		13.00mm
Actuator Orientation		Top Actuated

Documents & Media

RESOURCE TYPE		LINK
Datasheets		2-1825910-7
Environmental Information		FSM14JH Statement of Compliance
Featured Product		TE Connectivity Alcoswitch Switches
Featured Product		Tactile Switches
PCN Design/Specification		y-1825910-y Drawing Rev 21/Feb/2014
PCN Design/Specification		Clarification/Correction 14/NOV/2022
HTML Datasheet		1825910 Drawing
3D Drawings		2-1825910-7.pdf
Product Drawings		1825910 Drawing
Product Drawings		Tact Switch 3mm Footprint

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9031
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 62992

Can ship immediately.
