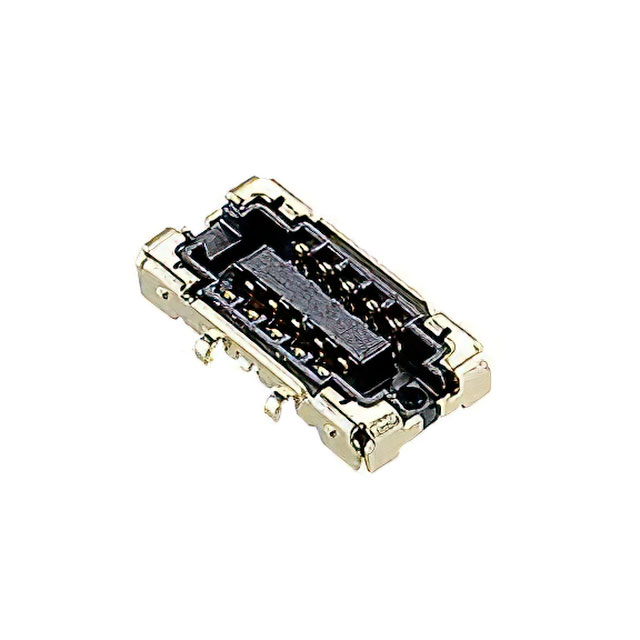

20865-020E-03

20865-020E-03

Part Number	20865-020E-03
Manufacturer	I-PEX
Other Part Numbers	5378-20865-020E-03TR-ND 5378-20865-020E-03CT-ND 5378-20865-020E-03DKR-ND 5378-20865-020E-03TR 5378-20865-020E-03DKR 5378-20865-020E-03CT
Description	NOVASTACK 35-HDN RECEPTACLE 20P
Detailed Description	20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer		I-PEX
Series		NOVASTACK® 35-HDN
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Solder Retention
Connector Type		Receptacle, Center Strip Contacts
Contact Finish		Gold
Mounting Type		Surface Mount
Number of Positions		20
Pitch		0.014" (0.35mm)
Height Above Board		0.023" (0.59mm)
Contact Finish Thickness		1.97µin (0.050µm)
Mated Stacking Heights		0.7mm
Number of Rows		2

Documents & Media

RESOURCE TYPE		LINK
Datasheets		20865-020E-03

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Vendor Undefined
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant

In Stock: 19987

Can ship immediately.
