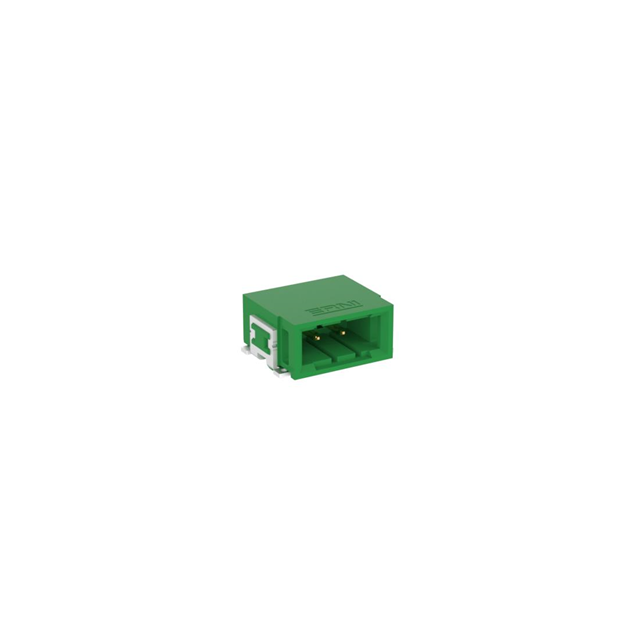

234834-E _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	234834-E
Manufacturer	TE Connectivity ERNI
Other Part Numbers	2684-234834-ETR-ND 2684-234834-ECT-ND 2684-234834-EDKR-ND 100403440001 2684-234834TR-ND 2684-234834DKR-ND 2684-234834CT-ND 2684-234834TR 2684-234834DKR 2684-234834-ETR 2684-234834-EDKR 2684-234834CT 234834-E 234834 2684-234834-ECT
Description	MAXIBR M 02POS RA A SMT GREEN
Detailed Description	Connector Header Surface Mount, Right Angle 2 position 0.100" (2.54mm)
Manufacturer Standard Lead Time	17 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		TE Connectivity ERNI
Series		MAXIBRIDGE
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Board Guide, Solder Retention
Connector Type		Header
Current Rating (Amps)		17A
Mounting Type		Surface Mount, Right Angle
Number of Positions		2
Number of Rows		1
Style		Board to Cable/Wire
Operating Temperature		-55°C ~ 150°C
Contact Type		Male Pin
Fastening Type		Latch Holder
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Insulation Color		Green
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Finish - Post		Gold
Contact Finish Thickness - Post		157.5µin (4.00µm)
Contact Shape		Square
Insulation Height		0.199" (5.05mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Liquid Crystal Polymer (LCP)
Contact Length - Mating		0.161" (4.09mm)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
