25-E800-02

25-E800-02

Part Number	25-E800-02
Manufacturer	NTE Electronics, Inc
Other Part Numbers	2368-25-E800-02-ND 2368-25-E800-02

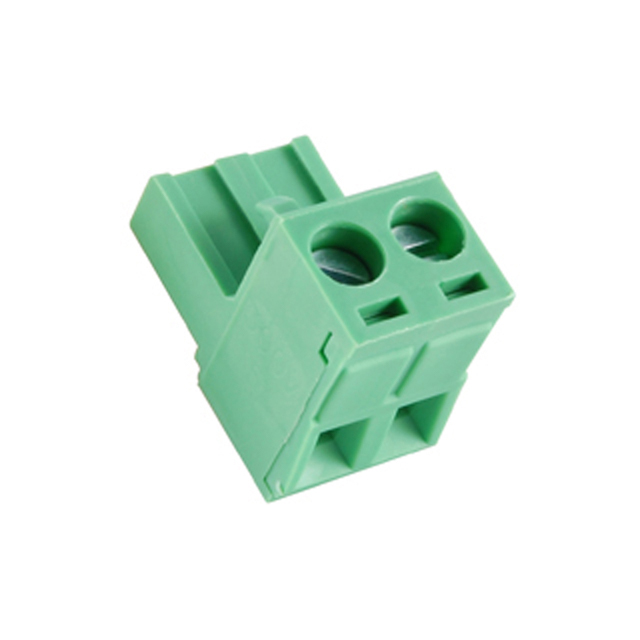

Description	TERMINAL BLOCK EUROSTYLE
Detailed Description	2 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		NTE Electronics, Inc
Series		25-E800
Packaging		Bag
Part Status		Active
Features		Retention Latches (Non-Wire Side)
Color		Green
Mounting Type		Free Hanging (In-Line)
Number of Positions		2
Pitch		0.197" (5.00mm)
Type		Plug, Female Sockets
Termination Style		Screw
Number of Levels		1
Wire Gauge or Range - AWG		12-28 AWG
Positions Per Level		2
Plug Wire Entry		180°
Current - UL		15 A
Voltage - UL		300 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		25-E800-02
Environmental Information		RoHS Statement
Environmental Information		REACH Statement
HTML Datasheet		Euro Style Terminal Blocks Datasheet

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant
