254324-E _ DIN 41612_Backplane Connectors_Connectors, Interconnects_42

13826519287

254324-E

254324-E

Part Number	254324-E
Manufacturer	TE Connectivity ERNI
Other Part Numbers	2684-254324-E-ND 254324 100303820001 2684-254324-E 254324-E 2684-254324-ND 2684-254324
Description	DIN C2 48POS M SLDR RA CL2

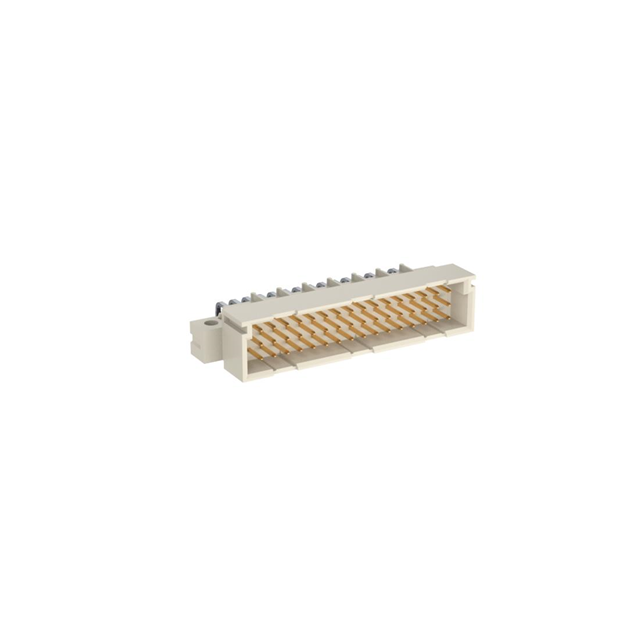

Detailed Description	48 Position Din Connector Header, Male Pins Gold Through Hole, Right Angle
Manufacturer Standard Lead Time	5 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Backplane Connectors DIN 41612
Manufacturer		TE Connectivity ERNI
Series		DIN
Packaging		Tray
Part Status		Active
Connector Type		Header, Male Pins
Contact Finish		Gold
Mounting Type		Through Hole, Right Angle
Number of Positions		48
Pitch		0.100" (2.54mm)
Style		C/2 (1/2 C)
Operating Temperature		-55°C ~ 125°C
Number of Positions Loaded		All
Termination		Solder
Level, Class		2
Material - Insulation		Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating		UL94 V-0
Number of Rows		3

Documents & Media

RESOURCE TYPE		LINK
Datasheets		254324-E
PCN Part Number		PN Change 26/JAN/2023

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 6796

Can ship immediately.
