261-313/341-000 _ Specialized_Terminal Blocks_Connectors, Interconnects

Part Number	261-313/341-000
Manufacturer	WAGO
Other Part Numbers	2946-261-313/341-000-ND 2943-261-313/341-000 0261-0313/0341-0000 2946-261-313/341-000 0261313/341000 2943-261-313/341-000-ND 261313/341000 0261-313/341-000 51138530

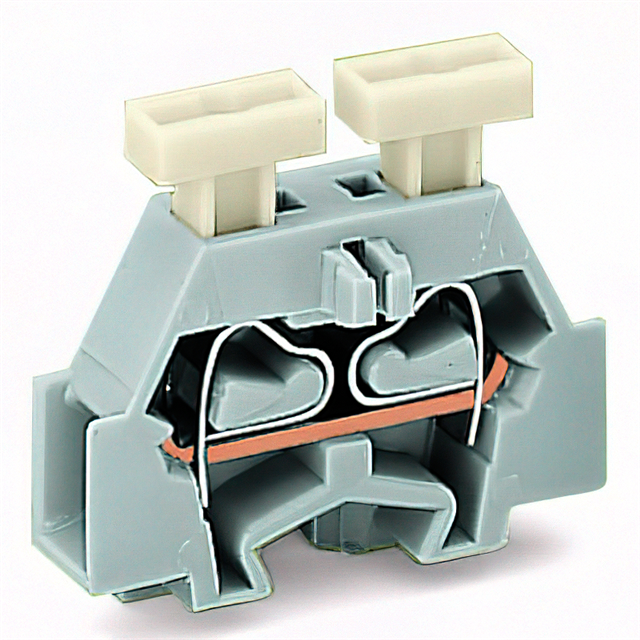

Description	2-CONDUCTOR TERMINAL BLOCK; ON B
Detailed Description	2 Position Terminal Block Gray Middle 6.0mm
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Specialized
Manufacturer		WAGO
Series
Packaging		Box
Part Status		Active
Features		Push Button Actuated
Mounting Type		Direct Mount
Length		1.106" (28.09mm)
Type		Middle
Termination Style		Push In, Spring
Material - Insulation		Polyamide (PA66), Nylon 6/6
Material Flammability Rating		UL94 V-0
Number of Levels		1
Terminal - Width		6.0mm
Wire Gauge or Range - AWG		14-28 AWG
Wire Gauge or Range - mm²		0.08-2.5mm²
Height (Max)		0.917" (23.30mm)
Housing Color		Gray
Stripping Length		8mm ~ 9mm
Current - IEC		24 A
Voltage - IEC		500 V
Number of Positions		2

RESOURCE TYPE		LINK
Datasheets		261-313/341-000

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
