Part Number |
2D-048-015B-QFN32-C
|
---|---|
Manufacturer | Helix Semiconductors |
Other Part Numbers |
2117-2D-048-015B-QFN32-CTR-ND
2117-2D-048-015B-QFN32-CCT-ND
2117-2D-048-015B-QFN32-CDKR-ND
2117-2D-048-015B-QFN32-CTR
2117-2D-048-015B-QFN32-CCT
2117-2D-048-015B-QFN32-CDKR
|
Description | IC REG BUCK 24V/12V DL 32QFN |
Detailed Description | Buck Switching Regulator IC Positive Fixed 24V, 12V 2 Output 650mA, 1A 32-VFQFN Exposed Pad |
Manufacturer Standard Lead Time | 12 weeks |
Category | ||
---|---|---|
Manufacturer | Helix Semiconductors | |
Series |
MxC® 200
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
|
|
Part Status | Active | |

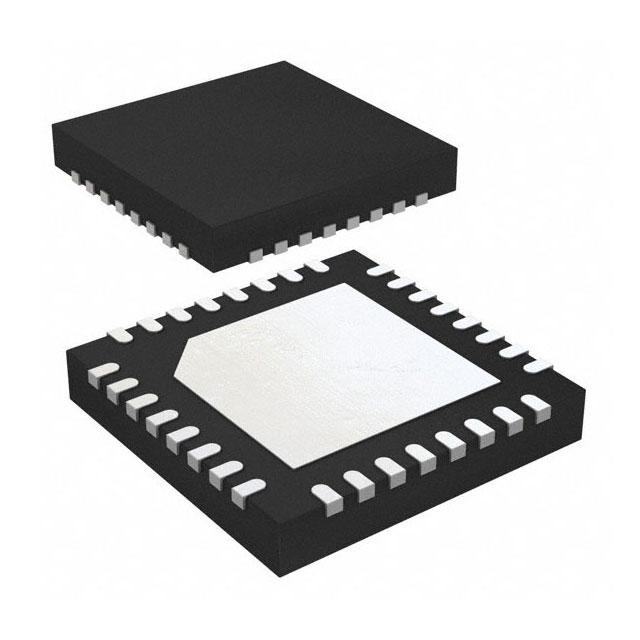

Package / Case | 32-VFQFN Exposed Pad | |
Output Type | Fixed | |
Mounting Type | Surface Mount | |
Number of Outputs | 2 | |
Function | Step-Down | |
Current - Output | 650mA, 1A | |
Operating Temperature | 0°C ~ 70°C | |
Output Configuration | Positive | |
Frequency - Switching | 95kHz | |
Voltage - Input (Max) | 57V | |
Topology | Buck | |
Supplier Device Package | 32-QFN (5x5) | |
Synchronous Rectifier | No | |
Voltage - Input (Min) | 20V | |
Voltage - Output (Min/Fixed) | 24V, 12V |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | 2D-048-015B-QFN32-C | |
Datasheets | MxC 200 Family Brief | |
Video File | PCIM 2019 Helix Semiconductors Presentation | |
Featured Product | Efficient AC/DC and DC/DC Power Solutions | |
HTML Datasheet | MxC® 200 Family Brief | |
HTML Datasheet | 2D_048_015B Datasheet |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.39.0001 | |
Moisture Sensitivity Level (MSL) | 5 (48 Hours) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
