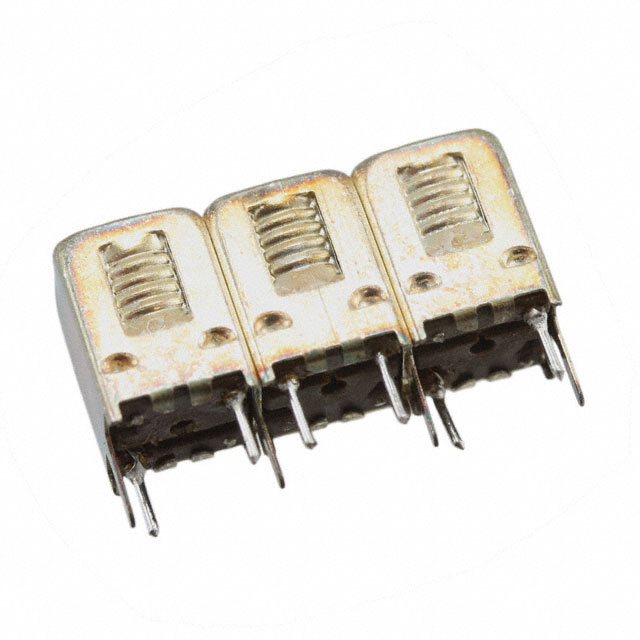

5HT-36020AS-360

Part Number
5HT-36020AS-360
Manufacturer Toko America Inc.
Other Part Numbers
TK5401-ND
TK5401
Description HELICAL FILTER 360MHZ CENTER
Detailed Description Helical Filters 360 MHz
Datasheet Datasheet

Product Attributes

Category
Manufacturer Toko America Inc.
Series
5HT
Packaging
Bulk
Part Status Obsolete
Mounting Type Through Hole
Insertion Loss 4dB
Selectivity 25dB (+50MHz) 33dB (-50MHz)
Ripple 1dB
Frequency - Center 360 MHz
Bandwidth 16 MHz

Documents & Media

RESOURCE TYPE LINK
Datasheets 5HT-36020AS-360
Product Drawings 5HT Series Bottom
Product Drawings 5HT Series Circuit
Product Drawings 5HT Series Side
Product Drawings 5HT Series Top

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status Vendor Undefined
RoHS Status RoHS non-compliant

Obsolete

This product is no longer manufactured.
