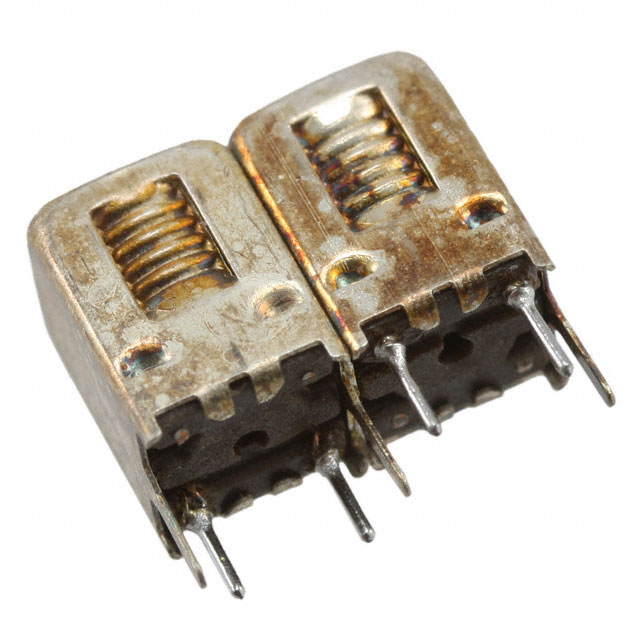

5HW-35045A-365

Part Number
5HW-35045A-365
Manufacturer Toko America Inc.
Other Part Numbers
TK5414-ND
TK5414
Description HELICAL FILTER 365MHZ CENTER
Detailed Description Helical Filters 365 MHz
Datasheet Datasheet

Product Attributes

Category
Manufacturer Toko America Inc.
Series
5HW
Packaging
Bulk
Part Status Obsolete
Mounting Type Through Hole
Insertion Loss 4.5dB
Selectivity 20dB (+50MHz) 25dB (-50MHz)
Ripple 1dB
Frequency - Center 365 MHz
Bandwidth 6 MHz

Documents & Media

RESOURCE TYPE LINK
Datasheets 5HW-35045A-365
Product Drawings 5HW Series Bottom
Product Drawings 5HW Series Circuit
Product Drawings 5HW Series Side
Product Drawings 5HW Series Top

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status Vendor Undefined
RoHS Status RoHS non-compliant

Obsolete

This product is no longer manufactured.
