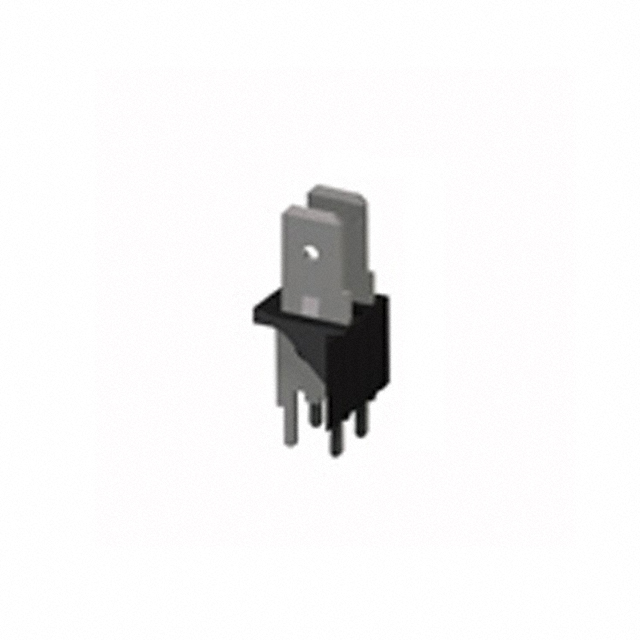

7832

7832

Part Number	7832
Manufacturer	Keystone Electronics Corp.
Other Part Numbers	36-7832-ND 7832K-ND 7832K-NDR 7832K Q480084B 36-7832 7832-ND
Description	CONN QC TAB 0.250 SOLDER
Detailed Description	0.250" (6.35mm) Quick Connect Male Solder Connector Non-Mating End Insulated
Manufacturer Standard Lead Time	11 weeks

Product Attributes

Category		Connectors, Interconnects Terminals Quick Connects, Quick Disconnect Connectors
Manufacturer		Keystone Electronics Corp.
Series
Packaging		Bulk
Part Status		Active
Features		2 Tabs
Gender		Male
Contact Finish		Tin
Color		Black
Mounting Type		Through Hole
Insulation		Non-Mating End Insulated
Terminal Type		Header
Length - Overall		0.984" (25.00mm)
Termination		Solder
Tab Thickness		0.032" (0.81mm)
Tab Width		0.250" (6.35mm)
Tab Length		0.307" (7.80mm)
Contact Material		Steel

Documents & Media

RESOURCE TYPE		LINK
Datasheets		7832
Environmental Information		RoHS Certificate
Environmental Information		Keystone Electronics REACH
Environmental Information		Keystone CA Prop65
HTML Datasheet		Quick-Fit Terminals
HTML Datasheet		7832 Drawing
Product Drawings		7832 Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 6806

Can ship immediately.
