970-009-020R121

970-009-020R121

Part Number	970-009-020R121
Manufacturer	NorComp
Other Part Numbers	970-09MPE-ND 970009020R121 970-09MPE
Description	CONN BACKSHELL 9POS 180DEG SHLD

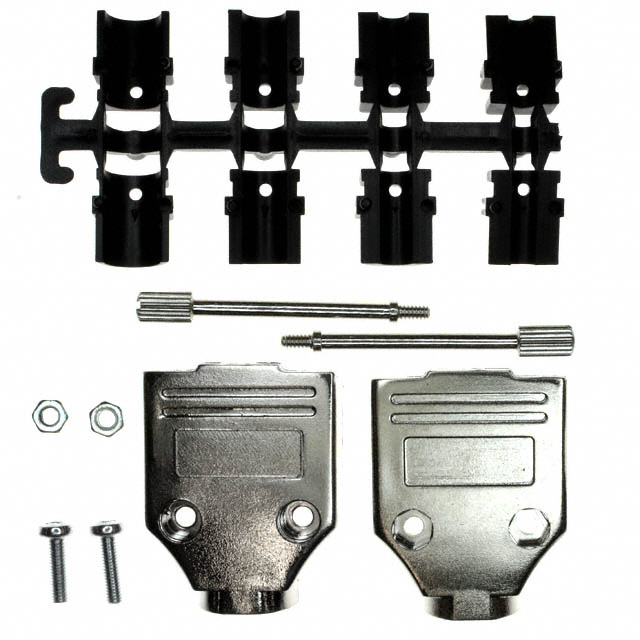

Detailed Description	9 Position Two Piece Backshell Connector Silver 180° Shielded
Manufacturer Standard Lead Time	24 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub, D-Shaped Connector Backshells, Hoods
Manufacturer		NorComp
Series		970, ARMOR
Packaging		Bulk
Part Status		Active
Features		Mating Screws 4-40
Color		Silver
Material		Plastic, Metallized
Shielding		Shielded
Number of Positions		9
Accessory Type		Two Piece Backshell
Hardware		Assembly Hardware, Grommets
Cable Exit		180°
Cable Type		Round
Plating		Nickel over Copper
Primary Material		Plastic
Compatible Shell Size		E
Compatible D-Sub Size		9pos and HD15pos

Documents & Media

RESOURCE TYPE		LINK
Datasheets		970-009-020R121
Datasheets		Backshell Reference Guide
Product Training Modules		Backshell Selection Guide
Product Training Modules		D-Sub Connectors
Video File		970 Series Metalized Plastic Backshell Assemblies
PCN Design/Specification		Multiple Devices 22/Oct/2012
3D Drawings		970-009-0(1,2)0Rxx1.pdf
Product Drawings		970 Series
Product Drawings		970 Series Internal Dimensions
Manuals		970 Series Assembly Instr

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8538.90.8180
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1436

Can ship immediately.
