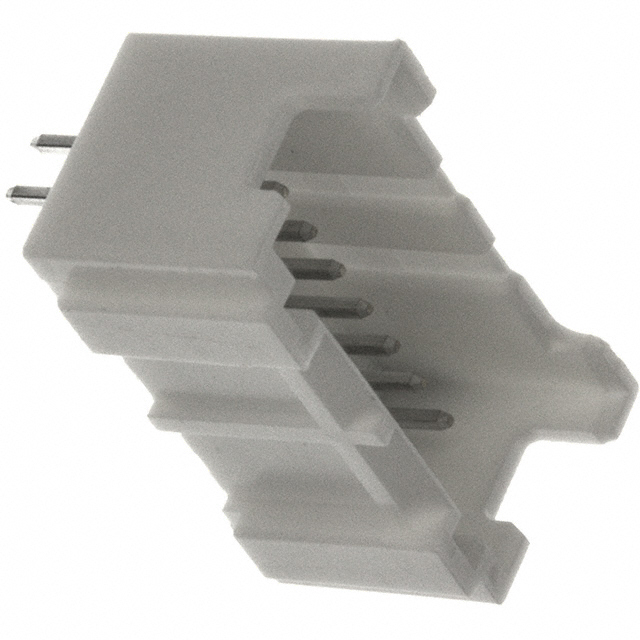

B16B-PADSS-1 _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	B16B-PADSS-1
Manufacturer	JST
Other Part Numbers	455-B16B-PADSS-1-ND 455-B16B-PADSS-1 B16B-PADSS-1(LF)(SN) B16BPADSS1LFSN 455-2010-ND 455-2010
Description	CONN HEADER VERT 16POS 2MM
Detailed Description	Connector Header Through Hole 16 position 0.079" (2.00mm)
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		JST
Series		PAD
Packaging		Tray
Part Status		Active
Features		Board Guide
Connector Type		Header
Voltage Rating		250V
Current Rating (Amps)		3A
Mounting Type		Through Hole
Number of Positions		16
Number of Rows		2
Style		Board to Cable/Wire
Operating Temperature		-25°C ~ 85°C
Contact Type		Male Pin
Fastening Type		Locking Ramp
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Mated Stacking Heights		12.4mm
Insulation Color		Natural
Pitch - Mating		0.079" (2.00mm)
Contact Finish - Mating		Tin
Contact Finish - Post		Tin
Contact Shape		Square
Contact Length - Post		0.134" (3.40mm)
Insulation Height		0.402" (10.20mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Polyamide (PA66), Nylon 6/6, Glass Filled
Row Spacing - Mating		0.079" (2.00mm)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
