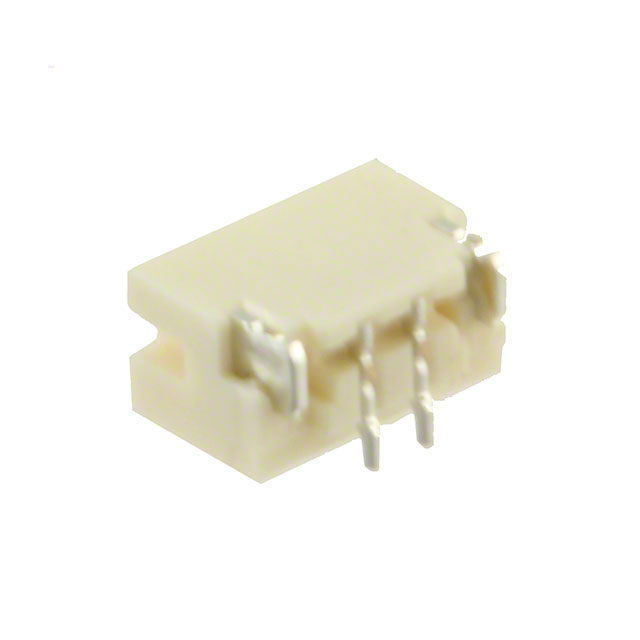

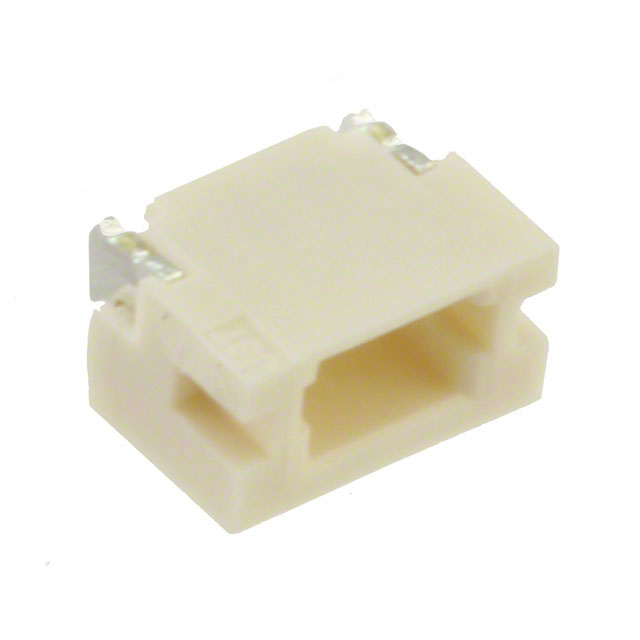

BM02B-SURS-TF _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	BM02B-SURS-TF
Manufacturer	JST
Other Part Numbers	455-2956-2-ND 455-2956-1-ND 455-2956-6-ND 455-2956-6 BM02B-SURS-TF(LF)(SN); Q5087320 BM02B-SURS-TF(LF)(SN) BM02B-SURS-TF(LF)(SN)-ND BM02B-SURS-TF(LF)(SN);-ND 455-2956-2 455-2956-1
Description	CONN HEADER SMD 2POS 0.8MM
Detailed Description	Connector Header Surface Mount 2 position 0.031" (0.80mm)
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		JST
Series		SUR
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Solder Retention
Connector Type		Header
Voltage Rating		30V
Current Rating (Amps)		0.2A, 0.5A
Mounting Type		Surface Mount
Number of Positions		2
Number of Rows		1
Style		Board to Cable/Wire
Operating Temperature		-25°C ~ 85°C
Contact Type		Outer Shroud Contact
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Mated Stacking Heights		3.95mm
Insulation Color		Natural
Pitch - Mating		0.031" (0.80mm)
Contact Finish - Mating		Tin
Contact Finish - Post		Tin
Contact Shape		Rectangular
Insulation Height		0.106" (2.70mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Polyamide (PA), Nylon

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
