BSS83PH6327XTSA1 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	BSS83PH6327XTSA1
Manufacturer	IR (Infineon Technologies)
Other Part Numbers	BSS83PH6327XTSA1TR-ND BSS83PH6327XTSA1CT-ND BSS83PH6327XTSA1DKR-ND BSS83P H6327CT BSS83PH6327XTSA1DKR BSS83PH6327XTSA1TR SP000702486 BSS83P H6327TR-ND BSS83P H6327DKR BSS83P H6327DKR-ND BSS83P H6327 BSS83P H6327CT-ND BSS83PH6327XTSA1CT BSS83P H6327-ND BSS83PH6327
Description	MOSFET P-CH 60V 330MA SOT23-3
Detailed Description	P-Channel 60 V 330mA (Ta) 360mW (Ta) Surface Mount PG-SOT23
Manufacturer Standard Lead Time	22 weeks

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		IR (Infineon Technologies)
Series		SIPMOS®
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

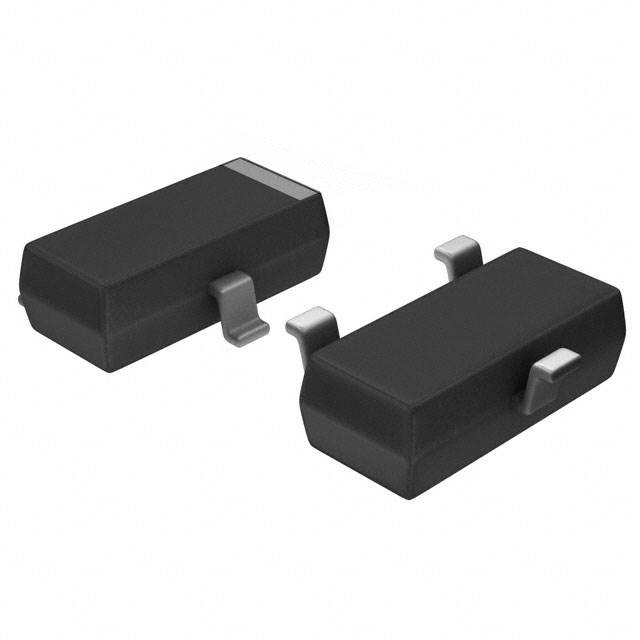

Package / Case		TO-236-3, SC-59, SOT-23-3
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		P-Channel
Current - Continuous Drain (Id) @ 25°C		330mA (Ta)
Rds On (Max) @ Id, Vgs		2Ohm @ 330mA, 10V
Power Dissipation (Max)		360mW (Ta)
Vgs(th) (Max) @ Id		2V @ 80µA
Supplier Device Package		PG-SOT23
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		60 V
Gate Charge (Qg) (Max) @ Vgs		3.57 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		78 pF @ 25 V

RESOURCE TYPE		LINK
Datasheets		BSS83PH6327XTSA1
Other Related Documents		Part Number Guide
Environmental Information		RoHS Certificate
Featured Product		Data Processing Systems
Simulation Models		MOSFET OptiMOS™ 60V P-Channel Spice Model

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.21.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
