CWR-170-40-0000 _ Edgeboard Connectors_Card Edge Connectors_Connectors, Interconnects

Part Number	CWR-170-40-0000
Manufacturer	CW Industries
Other Part Numbers	CCE40G-ND R503 CWR170400000 CCE40G IDE-C40-TG
Description	CONN EDGE DUAL FMALE 40POS 0.100
Detailed Description	40 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Blue
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Card Edge Connectors Edgeboard Connectors
Manufacturer		CW Industries
Series		170
Packaging		Bulk
Part Status		Active
Gender		Female
Contact Finish		Gold
Color		Blue
Mounting Type		Free Hanging (In-Line)
Number of Positions		40
Pitch		0.100" (2.54mm)
Operating Temperature		-55°C ~ 125°C
Read Out		Dual
Contact Type		Cantilever
Card Type		Non Specified - Dual Edge
Card Thickness		0.032" ~ 0.070" (0.81mm ~ 1.78mm)
Termination		IDC
Contact Finish Thickness		10.0µin (0.25µm)
Material - Insulation		Thermoplastic
Contact Material		Phosphor Bronze
Number of Positions/Bay/Row		20
Number of Rows		2

RESOURCE TYPE		LINK
Datasheets		CWR-170-40-0000
Datasheets		CWR-170-40-0000
Product Training Modules		Insulation Displacement Connectors

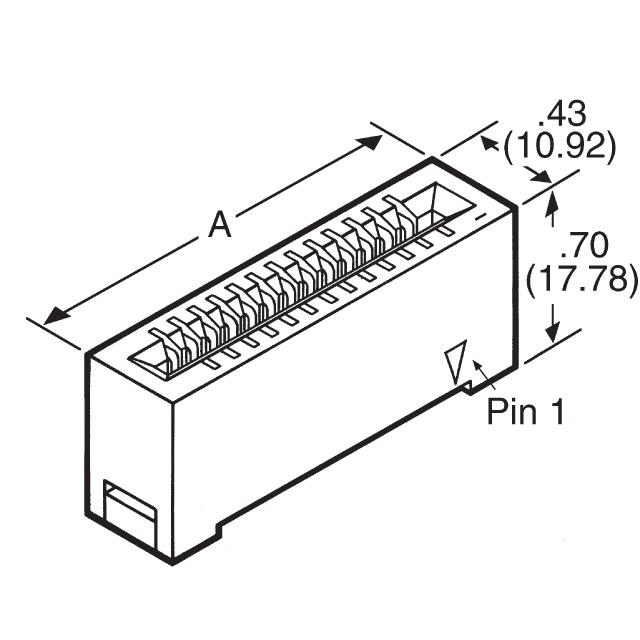

Product Drawings		CWR-170 Series
Product Drawings		CWR-170-XX-0000 Drawing

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
