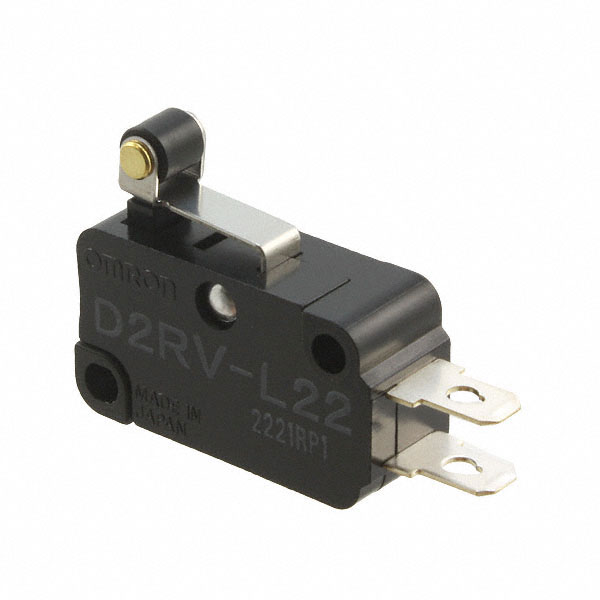

D2RV-L22

D2RV-L22

Part Number	D2RV-L22
Manufacturer	Omron Electronic Components
Other Part Numbers	SW1167-ND SW1167 D2RV-L22-ND D2RVL22
Description	SWITCH SNAP SPST-NO 0.25A 100V
Detailed Description	Switch SPST-NO Chassis Mount
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Limit Switches
Manufacturer		Omron Electronic Components
Series		D2RV
Packaging		Bulk
Part Status		Active
Current Rating (Amps)		250mA (DC)
Mounting Type		Chassis Mount
Circuit		SPST-NO
Switch Function		Off-Mom
Operating Temperature		-10°C ~ 60°C
Termination Style		Quick Connect - 0.187" (4.7mm)
Actuator Type		Lever, Roller
Operating Force		50gf
Ingress Protection		IP40
Pretravel		0.071" (1.8mm)
Differential Travel		0.040" (1.0mm)
Overtravel		0.015" (0.4mm)
Operating Position		0.803" (20.4mm)
Voltage Rating - DC		100 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		D2RV-L22
Other Related Documents		How to Read Date Codes
Product Training Modules		Snap Switches
HTML Datasheet		D2RV Series

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.7000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 91

Can ship immediately.
