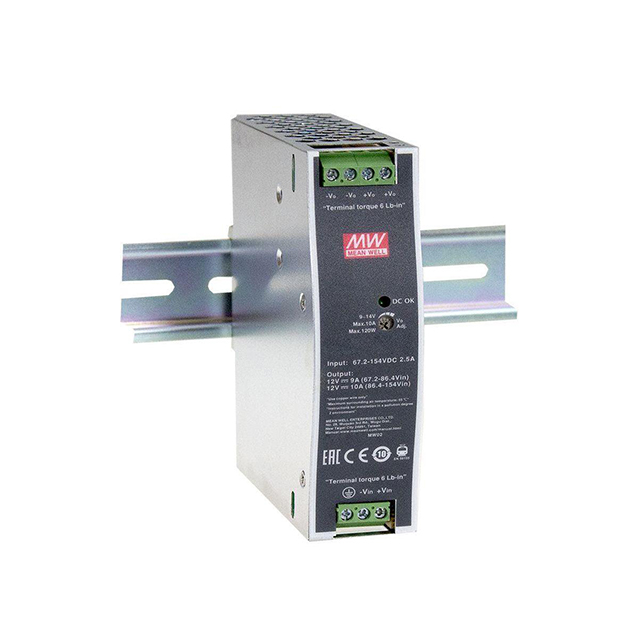

DDR-120B-12

Part Number
DDR-120B-12
Manufacturer MEAN WELL
Other Part Numbers
1866-5029-ND
1866-5029
Description DC/DC DIN RAIL SUPPLY 12V 120W
Manufacturer Standard Lead Time 12 weeks

Product Attributes

Category
Manufacturer MEAN WELL
Series
DDR-120 (120W)
Packaging
Box
Part Status Active
Power (Watts) 120W
Features Adjustable Output
Size / Dimension 4.02" L x 1.26" W x 4.93" H (102.0mm x 32.0mm x 125.2mm)
Operating Temperature -40°C ~ 70°C (With Derating)
Applications Industrial, ITE (Commercial), Railway
Input Type DC
Approval Agency CE, EAC
Efficiency 89%
Current - Output (Max) 10A
Voltage - Output 1 12V
Number of Outputs 1
Voltage - Isolation 4 kV
DC Voltage - Input (Min) 16.8V
DC Voltage - Input (Max) 33.6V

Documents & Media

RESOURCE TYPE LINK
Datasheets DDR-120B-12
Environmental Information Mean Well USA RoHS Cert
Environmental Information Mean Well USA REACH
PCN Design/Specification Mult Devs - safety certification 04/SEP/2020
PCN Design/Specification label marking chg 29/DEC/2020
HTML Datasheet DDR-120 Series Datasheet

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.40.9580
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 82

Can ship immediately.
