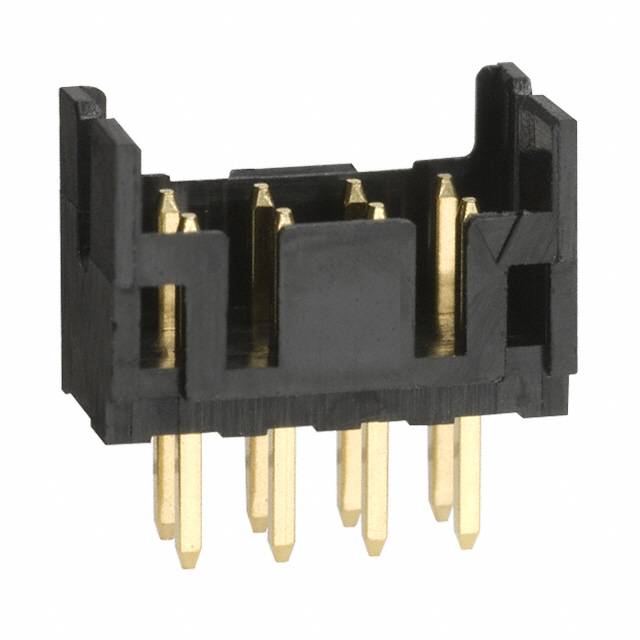

DF11-8DP-2DSA(01) _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	DF11-8DP-2DSA(01)
Manufacturer	Hirose Electric Co., Ltd.
Other Part Numbers	H2852-ND 543-0519-0-01 DF11-8DP-2DSA(01)-ND DF118DP2DSA01 H2852 *DF11-8DP-2DSA(01) Q8745051A Q1250514
Description	CONN HEADER VERT 8POS 2MM
Detailed Description	Connector Header Through Hole 8 position 0.079" (2.00mm)
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Hirose Electric Co., Ltd.
Series		DF11
Packaging		Bulk
Part Status		Active
Connector Type		Header
Voltage Rating		250V
Current Rating (Amps)		2A
Mounting Type		Through Hole
Number of Positions		8
Number of Rows		2
Style		Board to Board or Cable
Operating Temperature		-30°C ~ 85°C
Contact Type		Male Pin
Fastening Type		Detent Lock
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Brass
Mated Stacking Heights		7.55, 7.8mm, 8.9mm
Insulation Color		Black
Pitch - Mating		0.079" (2.00mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		8.00µin (0.203µm)
Contact Shape		Square
Contact Length - Post		0.118" (3.00mm)
Insulation Height		0.260" (6.60mm)
Shrouding		Shrouded - 4 Wall
Overall Contact Length		0.299" (7.60mm)
Insulation Material		Polyamide (PA), Nylon
Row Spacing - Mating		0.079" (2.00mm)
Contact Length - Mating		0.118" (3.00mm)

RESOURCE TYPE		LINK
Datasheets		DF11-8DP-2DSA(01)
Datasheets		DF11 Series Datasheet
Product Training Modules		Wire-to-Board Connector
Video File		Hirose SignalBee Wire-to-Board Connectors \| Digi-Key Daily
Featured Product		DF11 Series
Product Drawings		DF11-8DP-2DSA(01) Drawing

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
