Part Number |
DRI0039
|
---|---|
Manufacturer | DFRobot |
Other Part Numbers |
1738-1191-ND
1738-1191
|

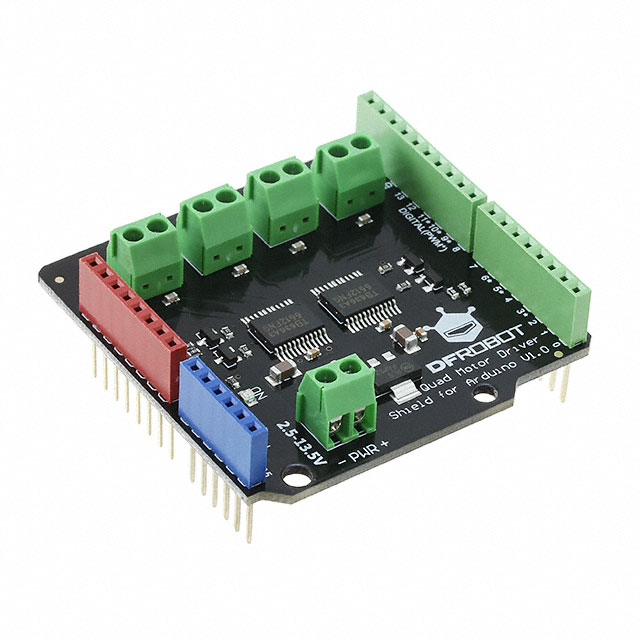

Description | QUAD MOTOR DRIVER SHIELD FOR ARD |
Detailed Description | TB6612FNG Motor Controller/Driver Power Management Arduino Platform Evaluation Expansion Board |
Manufacturer Standard Lead Time | 4 weeks |
Category | ||
---|---|---|
Manufacturer | DFRobot | |
Series | ||
Packaging |
Bulk
|
|
Part Status | Active | |
Function | Motor Controller/Driver | |
Type | Power Management | |
Contents | Board(s) | |
Utilized IC / Part | TB6612FNG | |
Platform | Arduino |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | DRI0039 | |
Datasheets | TB6612FNG | |
Design Resources | Quad Motor Driver Shield for Arduino Schematic | |
Design Resources | Quad Motor Driver Shield Layout | |
Reference Design Library | DRI0044: Dual DC Brush Motor, 1.2A, 2.5 ~ 12V | |
HTML Datasheet | DRI0039 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8473.30.1180 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
RoHS Status | ROHS3 Compliant |
