DS18B20-PAR+T&R

DS18B20-PAR+T&R

Part Number	DS18B20-PAR+T&R
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	DS18B20-PAR+T&RTR-ND DS18B20-PAR+T&RCT-ND DS18B20-PAR+T&RTR DS18B20PARTR DS18B20-PAR+T&RCT DS18B20-PAR+T&R-ND
Description	SENSOR DIGITAL -55C-125C TO92-3
Detailed Description	Temperature Sensor Digital, Local -55°C ~ 125°C 12 b TO-92-3
Manufacturer Standard Lead Time	28 weeks
Datasheet	Datasheet

Product Attributes

Category		Sensors, Transducers Temperature Sensors Analog and Digital Output
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Output Switch, Programmable Limit, Programmable Resolution

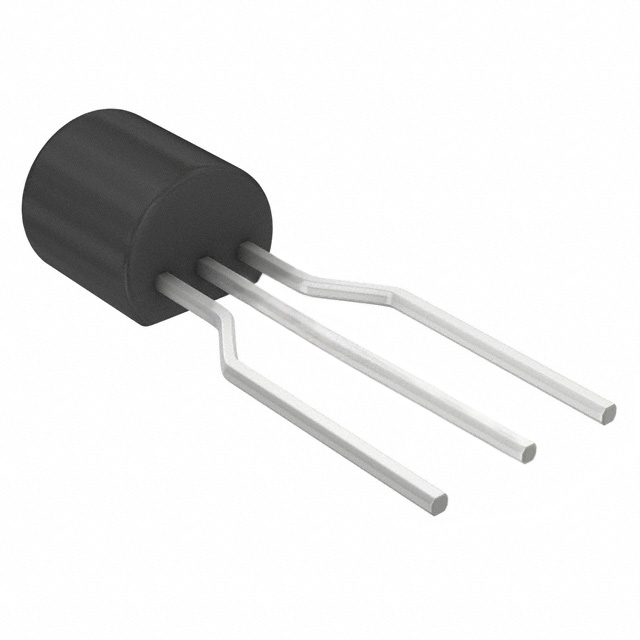

Package / Case		TO-226-3, TO-92-3 (TO-226AA) Formed Leads
Output Type		1-Wire®
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 125°C
Voltage - Supply		3V ~ 5.5V
Sensor Type		Digital, Local
Resolution		12 b
Supplier Device Package		TO-92-3
Test Condition		-10°C ~ 85°C (-55°C ~ 125°C)
Accuracy - Highest (Lowest)		±0.5°C (±2°C)
Sensing Temperature - Local		-55°C ~ 125°C

Documents & Media

RESOURCE TYPE		LINK
Datasheets		DS18B20-PAR+T&R
Application Notes		Curve Fitting the Error of a Bandgap-Based Digital Temperature Sensor
Application Notes		Wirelessly Powering, Accessing a 1-Wire Network
Application Notes		Create a 1-Wire Master with Xilinx PicoBlaze
Application Notes		Understanding the DS1WM Synthesizable 1-Wire Bus Master
Product Training Modules		1-Wire Communications
Environmental Information		Maxim Integrated RoHS Cert
Environmental Information		Maxim Integrated REACH
Environmental Information		Material Declaration DS18B20-PAR+T&R
Featured Product		Waterproof DS18B20 Sensor Kit
Product Drawings		21-0248 Pkg Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 2119

Can ship immediately.
