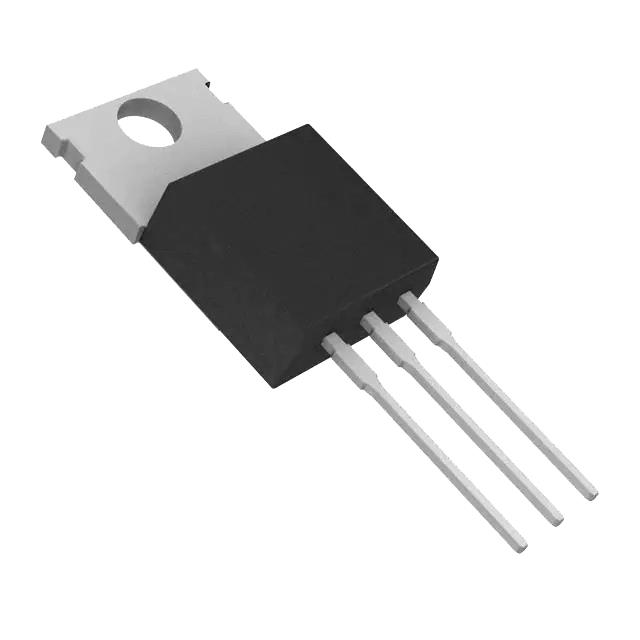

Part Number	FDP070AN06A0
Manufacturer	Fairchild Semiconductor
Other Part Numbers	2156-FDP070AN06A0-ND FAIFSCFDP070AN06A0 2156-FDP070AN06A0
Description	MOSFET N-CH 60V 15A/80A TO220-3
Detailed Description	N-Channel 60 V 15A (Ta), 80A (Tc) 175W (Tc) Through Hole TO-220-3

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Fairchild Semiconductor
Series		PowerTrench®
Packaging		Bulk
Part Status		Active
Package / Case		TO-220-3
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		15A (Ta), 80A (Tc)
Rds On (Max) @ Id, Vgs		7mOhm @ 80A, 10V
Power Dissipation (Max)		175W (Tc)
Vgs(th) (Max) @ Id		4V @ 250µA
Supplier Device Package		TO-220-3
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		60 V
Gate Charge (Qg) (Max) @ Vgs		66 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		3000 pF @ 25 V
