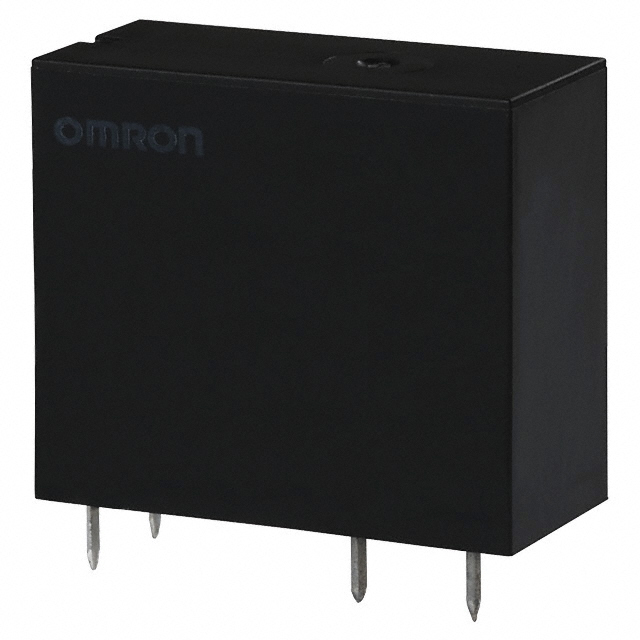

G2R-1Z4 AC24 _ Power Relays, Over 2 Amps_Relays

Part Number	G2R-1Z4 AC24
Manufacturer	Omron Electronic Components
Other Part Numbers	G2R-1Z4AC24-ND G2R1Z4AC24 G2R-1Z4AC24
Description	RELAY GEN PURPOSE SPDT 5A 24V
Detailed Description	General Purpose Relay SPDT (1 Form C) 24VAC Coil Through Hole

Category		Relays Power Relays, Over 2 Amps
Manufacturer		Omron Electronic Components
Series		G2R
Packaging		Tray
Part Status		Active
Mounting Type		Through Hole
Coil Voltage		24VAC
Operating Temperature		-40°C ~ 70°C
Termination Style		PC Pin
Approval Agency		CSA, TUV, UR, VDE
Relay Type		General Purpose
Coil Current		37.5 mA
Coil Type		Non Latching
Seal Rating		Sealed - Fully
Contact Material		Silver Alloy
Contact Form		SPDT (1 Form C)
Contact Rating (Current)		5 A
Switching Voltage		380VAC, 125VDC - Max
Must Release Voltage		7.2 VAC
Must Operate Voltage		19.2 VAC
Operate Time		15 ms
Release Time		10 ms
Load - Max Switching		1900VA, 625W

RESOURCE TYPE		LINK
Datasheets		G2R-1Z4 AC24
Other Related Documents		How to Read Date Codes
Video File		Relay Basics - Another Teaching Moment \| DigiKey Electronics
Video File		How to Choose a Relay - Another Teaching Moment
HTML Datasheet		G2R VDC Datasheet

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0020
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		RoHS Compliant
