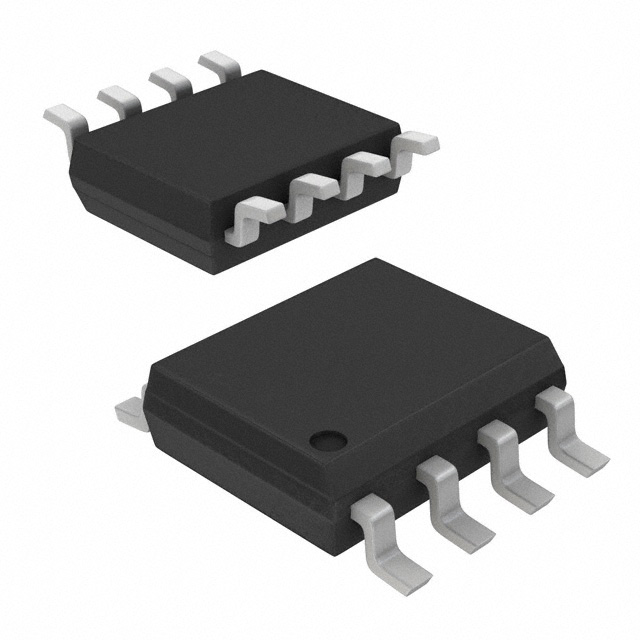

HCPL-0530-500E _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	HCPL-0530-500E
Manufacturer	Broadcom
Other Part Numbers	516-2698-2-ND 516-2698-1-ND 516-2698-6-ND 516-2698-2 HCPL-0530-500E-ND 516-2698-1 516-2698-6 HCPL0530500E
Description	OPTOISO 3.75KV 2CH TRANS 8SOIC
Detailed Description	Optoisolator Transistor Output 3750Vrms 2 Channel 8-SO
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Broadcom
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		8-SOIC (0.154", 3.90mm Width)
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.5V
Input Type		DC
Current - Output / Channel		8mA
Voltage - Isolation		3750Vrms
Current Transfer Ratio (Min)		7% @ 16mA
Current Transfer Ratio (Max)		50% @ 16mA
Supplier Device Package		8-SO
Voltage - Output (Max)		20V
Turn On / Turn Off Time (Typ)		200ns, 1.3µs
Number of Channels		2
Current - DC Forward (If) (Max)		25 mA

RESOURCE TYPE		LINK
Datasheets		HCPL-0530-500E
PCN Design/Specification		Molding Chg 08/Feb/2016
PCN Design/Specification		HCPL Elect Spec 04/Dec/2013
PCN Packaging		Multiple Devices Marking/Labeling 07/Aug/2013
PCN Packaging		Marking/Labeling Revision B 14/Jan/2014
Product Drawings		Optocoupler 8-Pin Circuit

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
