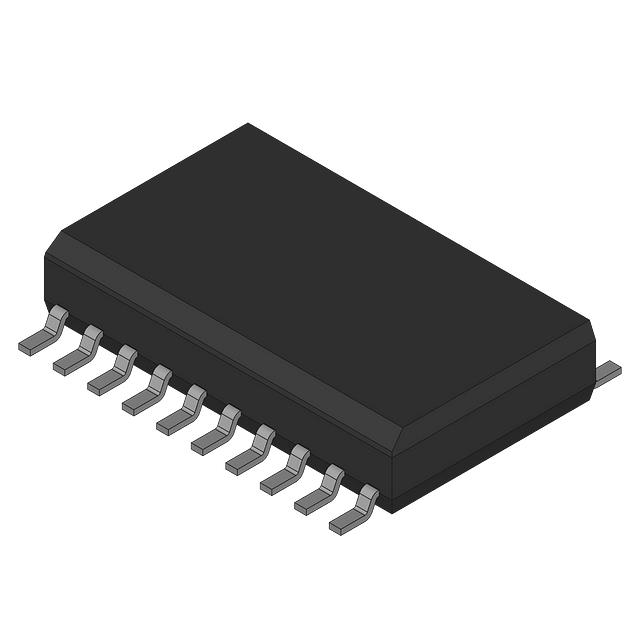

MM74HC574WM _ Flip Flops_Logic_Integrated Circuits (ICs)

Part Number	MM74HC574WM
Manufacturer	Fairchild Semiconductor
Other Part Numbers	2156-MM74HC574WM-ND 2156-MM74HC574WM FAIFSCMM74HC574WM
Description	BUS DRIVER, HC/UH SERIES, 1-FUNC
Detailed Description	Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-SOIC (0.295", 7.50mm Width)
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Logic Flip Flops
Manufacturer		Fairchild Semiconductor
Series		74HC
Packaging		Bulk
Part Status		Active
Package / Case		20-SOIC (0.295", 7.50mm Width)
Output Type		Tri-State, Non-Inverted
Mounting Type		Surface Mount
Number of Elements		1
Function		Standard
Type		D-Type
Operating Temperature		-40°C ~ 85°C (TA)
Voltage - Supply		2V ~ 6V
Current - Quiescent (Iq)		8 µA
Current - Output High, Low		7.8mA, 7.8mA
Trigger Type		Positive Edge
Clock Frequency		35 MHz
Input Capacitance		5 pF
Supplier Device Package		20-SOIC
Max Propagation Delay @ V, Max CL		27ns @ 6V, 150pF
Number of Bits per Element		8

RESOURCE TYPE		LINK
Datasheets		MM74HC574WM
