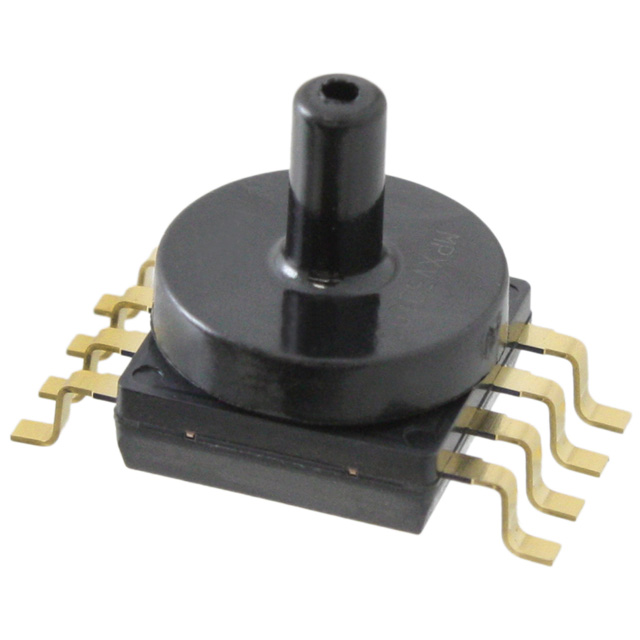

Part Number |
MPXAZ6115AC6U
|
---|---|
Manufacturer | NXP Semiconductors |
Other Part Numbers |
MPXAZ6115AC6U-ND
|
Description | SENSOR 16.68PSIA 0.13" 4.7V |
Detailed Description | Pressure Sensor 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) Absolute Male - 0.13" (3.17mm) Tube 0.2 V ~ 4.7 V 8-SMD, Gull Wing, Top Port |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | NXP Semiconductors | |
Series |
MPXAZ6115A
|
|
Packaging |
Tube
|
|
Part Status | Obsolete | |
Features | Temperature Compensated | |
Package / Case | 8-SMD, Gull Wing, Top Port | |
Output Type | Analog Voltage | |
Mounting Type | Surface Mount | |
Output | 0.2 V ~ 4.7 V | |
Operating Pressure | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | |
Pressure Type | Absolute | |
Accuracy | ±1.5% | |
Operating Temperature | -40°C ~ 125°C | |
Termination Style | Gull Wing | |
Voltage - Supply | 4.75V ~ 5.25V | |
Port Size | Male - 0.13" (3.17mm) Tube | |
Applications | Board Mount | |
Port Style | Barbless | |
Maximum Pressure | 58.02PSI (400kPa) |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | MPXAZ6115AC6U | |
Environmental Information | NXP USA Inc RoHS Cert | |
Environmental Information | NXP USA Inc REACH | |
PCN Assembly/Origin | COO/Label 15-apr-2022 | |
PCN Packaging | All Dev Label Update 15/Dec/2020 | |
HTML Datasheet | MPXA6115A, MPXH6115A Series | |
Product Drawings | MPXx(4,5,6)xx(G,A,V)C6xx Top | |
Product Drawings | MPXx(4,5,6)xx(G,A,V)C6xx Side |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.39.0001 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
