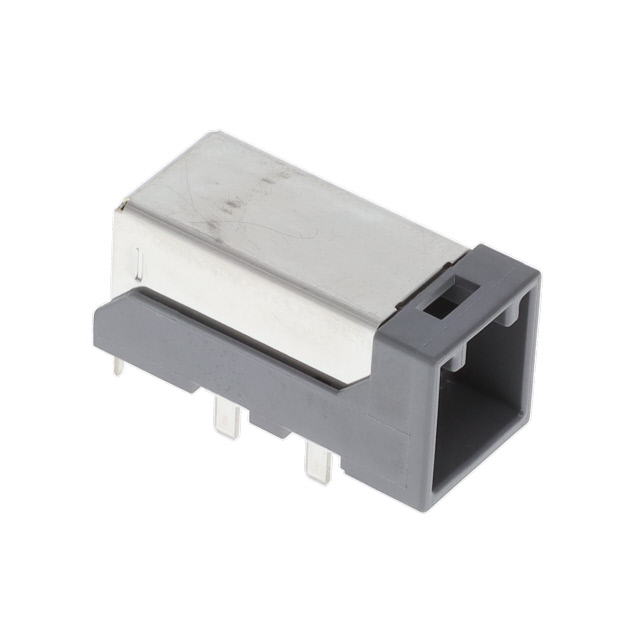

MX49004HQ1 _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	MX49004HQ1
Manufacturer	JAE Electronics
Other Part Numbers	670-3090-ND 670-3090 MX49004HQ1-ND
Description	CONN HEADER R/A 4POS 2MM
Detailed Description	Connector Header Through Hole, Right Angle 4 position 0.079" (2.00mm)
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		JAE Electronics
Series		MX49
Packaging		Tray
Part Status		Active
Features		Board Guide, Board Lock, Shielded
Connector Type		Header
Mounting Type		Through Hole, Right Angle
Number of Positions		4
Number of Rows		2
Style		Board to Cable/Wire
Operating Temperature		-40°C ~ 85°C
Applications		Automotive
Contact Type		Male Pin
Fastening Type		Latch Holder
Number of Positions Loaded		All
Termination		Solder
Contact Material		Brass
Pitch - Mating		0.079" (2.00mm)
Contact Finish - Mating		Gold
Contact Finish - Post		Tin
Contact Shape		Square
Contact Length - Post		0.087" (2.20mm)
Insulation Height		0.496" (12.60mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Syndiotactic Polystyrene (SPS), Glass Filled

RESOURCE TYPE		LINK
Datasheets		MX49004HQ1

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
