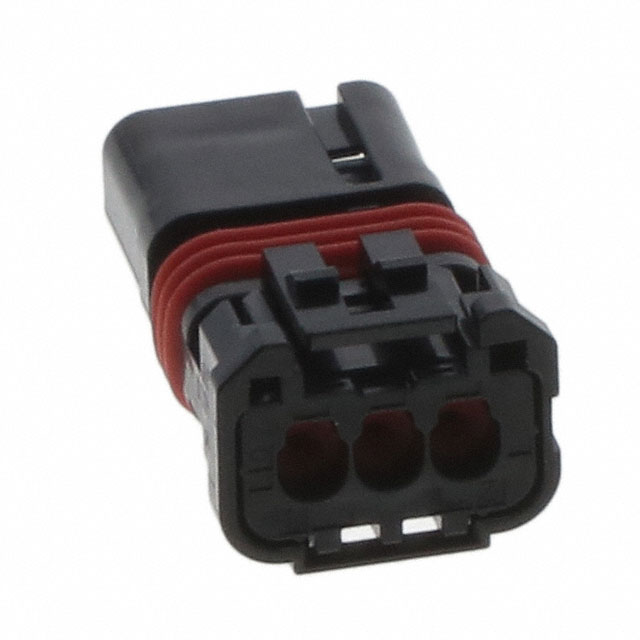

MX80A03SZ1A

MX80A03SZ1A

Part Number	MX80A03SZ1A
Manufacturer	JAE Electronics
Other Part Numbers	670-MX80A03SZ1A-ND 670-MX80A03SZ1A
Description	CONN SOCKET HSG 3POS 2.54MM
Detailed Description	3 Rectangular Connectors - Housings Socket Black 0.100" (2.54mm)
Manufacturer Standard Lead Time	16 weeks

Product Attributes

Category		Connectors, Interconnects Rectangular Connectors Rectangular Connector Housings
Manufacturer		JAE Electronics
Series		MX80
Packaging		Bag
Part Status		Active
Features		Waterproof (Mated, IP67)
Connector Type		Socket
Contact Termination		Crimp
Color		Black
Mounting Type		Free Hanging (In-Line)
Number of Positions		3
Pitch		0.100" (2.54mm)
Operating Temperature		-40°C ~ 125°C
Contact Type		Female Socket
Fastening Type		Latch Lock
Note		Contacts Not Included
Insulation Material		Polybutylene Terephthalate (PBT), Glass Filled
Number of Rows		1

Documents & Media

RESOURCE TYPE		LINK
Featured Product		MX80 Series Compact Waterproof Connectors
PCN Assembly/Origin		ENG-E23-050 5/19/2023

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8538.90.6000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

In Stock: 7

Can ship immediately.
