P0102DA 2AL3

P0102DA 2AL3

Part Number	P0102DA 2AL3
Manufacturer	STMicroelectronics
Other Part Numbers	497-12499-1-ND 497-12499-3-ND -497-12499-1 P0102DA 2AL3-ND 497-12499-3 P0102DA2AL3 -497-12499-3 497-12499-1
Description	SCR 400V 800MA TO92-3
Detailed Description	SCR 400 V 800 mA Sensitive Gate Through Hole TO-92-3
Manufacturer Standard Lead Time	25 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Thyristors SCRs
Manufacturer		STMicroelectronics
Series
Packaging		Cut Tape (CT) Tape & Box (TB)
Part Status		Active

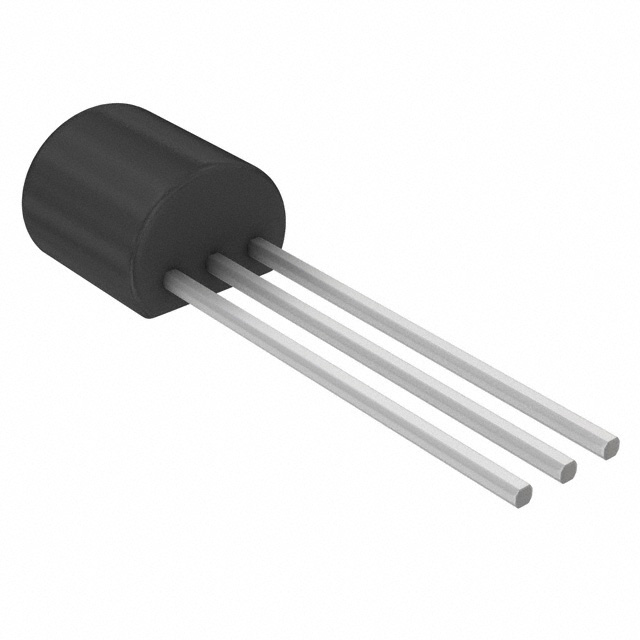

Package / Case		TO-226-3, TO-92-3 (TO-226AA)
Mounting Type		Through Hole
SCR Type		Sensitive Gate
Operating Temperature		-40°C ~ 125°C
Current - Hold (Ih) (Max)		5 mA
Current - Gate Trigger (Igt) (Max)		200 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)		7A, 8A
Current - On State (It (AV)) (Max)		500 mA
Voltage - Gate Trigger (Vgt) (Max)		800 mV
Voltage - On State (Vtm) (Max)		1.95 V
Current - Off State (Max)		10 µA
Supplier Device Package		TO-92-3
Current - On State (It (RMS)) (Max)		800 mA
Voltage - Off State		400 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		P0102DA 2AL3
Other Related Documents		P010XX View All Specifications
Product Training Modules		AC Switches Family, Part Two
Product Training Modules		AC Switches Family, Part One
PCN Packaging		Box Label Chg 28/Jul/2016

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.30.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 16160

Can ship immediately.
