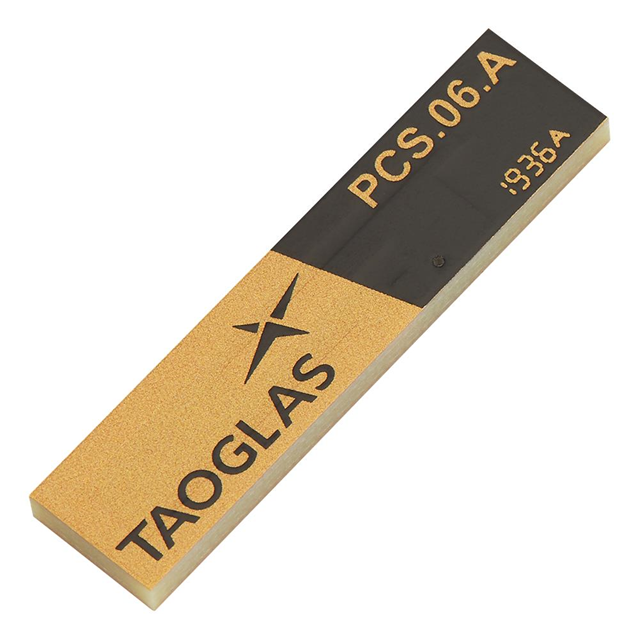

Part Number	PCS.06.A
Manufacturer	Taoglas
Other Part Numbers	931-1296-2-ND 931-1296-1-ND 931-PCS.06.ADKR-ND 931-1296-ND 931-PCS.06.ADKR 2266-PCS.06.A Q12048240 931-1296 931-1296-2 931-1296-1
Description	RF ANT 700MHZ/850MHZ CHIP SLD
Detailed Description	700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA Chip RF Antenna 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz -0.21dBi, 0.77dBi, 0.61dBi, 3.05dBi, 2.92dBi, 3.17dBi, 3.72dBi Solder Surface Mount
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		Taoglas
Series		Havok
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Mounting Type		Surface Mount
Frequency Range		698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz
Applications		CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA
Gain		-0.21dBi, 0.77dBi, 0.61dBi, 3.05dBi, 2.92dBi, 3.17dBi, 3.72dBi
Termination		Solder
Number of Bands		7
Antenna Type		Chip
Height (Max)		0.118" (3.00mm)
Return Loss		-7dB, -6dB
Frequency Group		Wide Band
Frequency (Center/Band)		700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz
RF Family/Standard		Cellular
Power - Max		5 W
