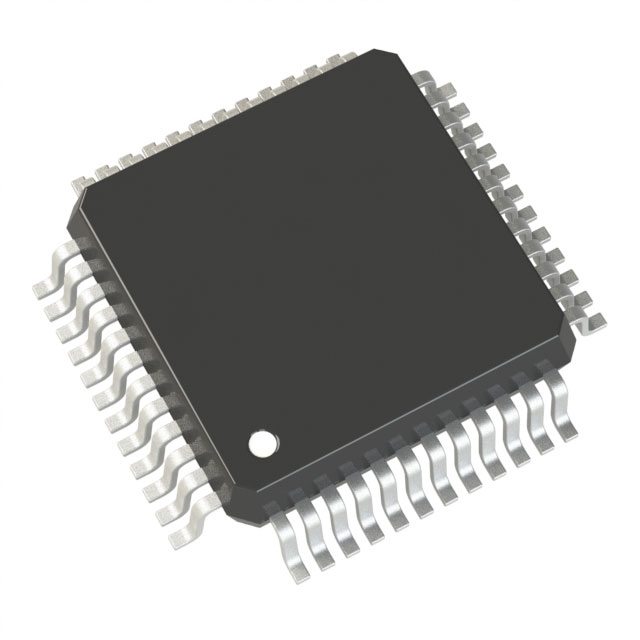

R5F100GAAFB#30

Part Number
R5F100GAAFB#30
Manufacturer Intersil (Renesas Electronics Corporation)
Other Part Numbers
R5F100GAAFB#30-ND
-1161-R5F100GAAFB#30
Description IC MCU 16BIT 16KB FLASH 48LFQFP
Detailed Description RL78 RL78/G13 Microcontroller IC 16-Bit 32MHz 16KB (16K x 8) FLASH 48-LFQFP (7x7)
Manufacturer Standard Lead Time 12 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Intersil (Renesas Electronics Corporation)
Series
RL78/G13
Packaging
Tray
Part Status Active
Package / Case 48-LQFP
Mounting Type Surface Mount
Speed 32MHz
Program Memory Size 16KB (16K x 8)
RAM Size 2K x 8
Operating Temperature -40°C ~ 85°C (TA)
Oscillator Type Internal
Program Memory Type FLASH
EEPROM Size 4K x 8
Core Processor RL78
Data Converters A/D 10x8/10b
Core Size 16-Bit
Voltage - Supply (Vcc/Vdd) 1.6V ~ 5.5V
Connectivity CSI, I2C, LINbus, UART/USART
Peripherals DMA, LVD, POR, PWM, WDT
Supplier Device Package 48-LFQFP (7x7)
Number of I/O 34
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets R5F100GAAFB#30
PCN Packaging Label Change-All Devices 01/Dec/2022
PCN Part Status Change Mult Dev Pkg Chgs 1/Jul/2020

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN 3A991A2
HTSUS 8542.31.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 914

Can ship immediately.
