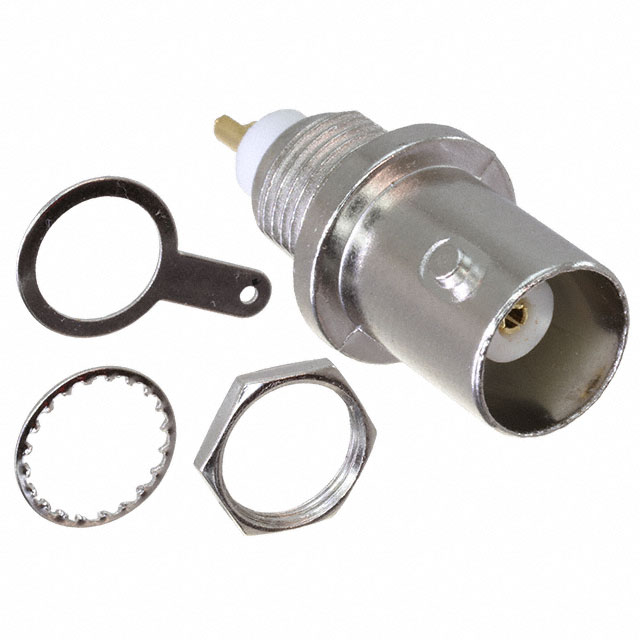

RF1-106-D-00-50-HDW _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	RF1-106-D-00-50-HDW
Manufacturer	Adam Tech
Other Part Numbers	2057-RF1-106-D-00-50-HDW-ND 2057-RF1-106-D-00-50-HDW
Description	BNC STRAIGHT BULKHEAD SKT 50 OHM
Detailed Description	BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Adam Tech
Series		RF
Packaging		Bag
Part Status		Active
Connector Type		Jack, Female Socket
Contact Termination		Solder Cup
Impedance		50 Ohms
Mounting Type		Panel Mount
Fastening Type		Bayonet Lock
Connector Style		BNC
Dielectric Material		Polyoxymethylene (POM)
Mounting Feature		Bulkhead
Body Material		Zinc
Housing Color		Natural
Shield Termination		Solder
Center Contact Material		Phosphor Bronze
Body Finish		Nickel
Center Contact Plating		Gold
Frequency - Max		4 GHz
Number of Ports		1
Voltage Rating		500 V

RESOURCE TYPE		LINK
Datasheets		RF1-106-D-00-50-HDW
Other Related Documents		ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
