S1741-46R

Part Number
S1741-46R
Manufacturer Harwin
Other Part Numbers
952-1477-2-ND
952-1477-1-ND
952-1477-6-ND
952-1477-1
952-1477-2
3937-S1741-46R
S174146R
952-1477-6

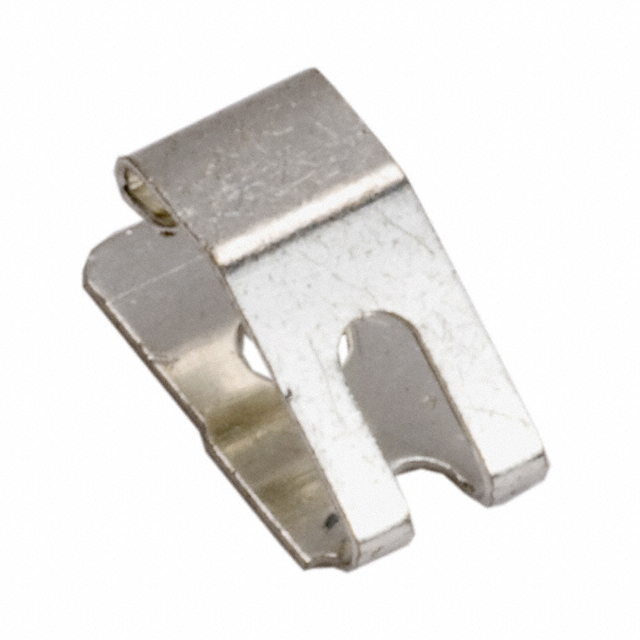

Description RFI SHLD CLIP SS TIN SOLDER
Manufacturer Standard Lead Time 16 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Harwin
Series
EZ BoardWare
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Material Stainless Steel
Length 0.213" (5.40mm)
Type Shield Clip
Width 0.122" (3.10mm)
Operating Temperature -55°C ~ 125°C
Height 0.098" (2.50mm)
Attachment Method Solder
Plating Tin
Plating - Thickness 157.48µin (4.00µm)

Documents & Media

RESOURCE TYPE LINK
Datasheets S1741-46R
Other Related Documents S1741-46R
Other Related Documents S1741-46R
Other Related Documents DEV-001
Product Training Modules EZ-BoardWare
Product Training Modules EMC Shielding
Video File Harwin’s Company Overview
Video File SMT Spring Contacts | Datasheet Preview
Environmental Information RoHS Cert S1741-46R
Environmental Information Harwin REACH
Featured Product Spring Contact Development Kit
Featured Product EZ-Spring Contacts
HTML Datasheet S1741-46R Drawing
Product Drawings S1741-46R

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.30.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 10379

Can ship immediately.
