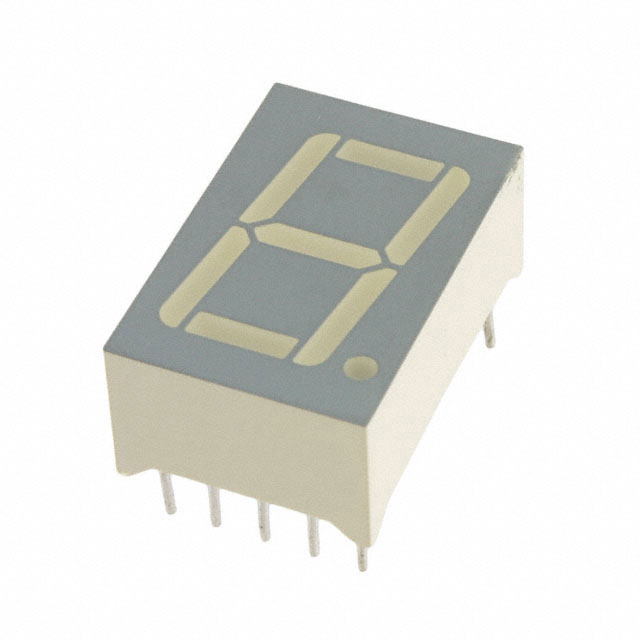

SA56-11EWA

SA56-11EWA

Part Number	SA56-11EWA
Manufacturer	Kingbright
Other Part Numbers	754-1458-5-ND SA5611EWA 754-1458-5
Description	DISPLAY 7SEG 0.56" SGL RED 10DIP
Detailed Description	Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2V 20mA 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) 10-DIP (0.600", 15.24mm)
Manufacturer Standard Lead Time	8 weeks

Product Attributes

Category		Optoelectronics LED Character and Numeric
Manufacturer		Kingbright
Series
Packaging		Tube
Part Status		Active
Package / Case		10-DIP (0.600", 15.24mm)
Color		Red
Display Type		7-Segment
Size / Dimension		0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm)
Number of Characters		1
Millicandela Rating		6.4mcd
Common Pin		Common Anode
Digit/Alpha Size		0.56" (14.22mm)
Voltage - Forward (Vf) (Typ)		2V
Current - Test		20mA
Wavelength - Peak		627nm
Power Dissipation (Max)		75mW

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SA56-11EWA
Environmental Information		Kingbright RoHS3
Environmental Information		Kingbright REACH
PCN Packaging		Label Change 01/Oct/2016
Product Drawings		SA56 Series Top
Product Drawings		SA56 Series Side 2
Product Drawings		SA56 Series Side 1

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 4121

Can ship immediately.
