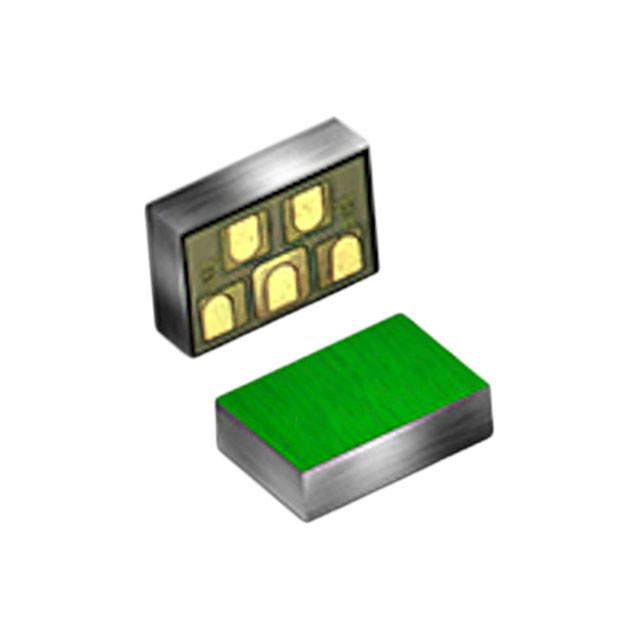

VEMI256A-SD2-G4-08 _ EMI/RFI Filters (LC, RC Networks)_Filters

Part Number	VEMI256A-SD2-G4-08
Manufacturer	Vishay General Semiconductor – Diodes Division
Other Part Numbers	112-VEMI256A-SD2-G4-08TR-ND 112-VEMI256A-SD2-G4-08CT-ND 112-VEMI256A-SD2-G4-08DKR-ND 112-VEMI256A-SD2-G4-08DKR 112-VEMI256A-SD2-G4-08TR 112-VEMI256A-SD2-G4-08CT
Description	ESD PROTECTION DIODE CLP1007
Detailed Description	RC (Pi) EMI Filter 2nd Order Low Pass 2 Channel R = 60Ohms, C = 90pF 8.5 A 5-XFDFN
Manufacturer Standard Lead Time	17 weeks
Datasheet	Datasheet

Category		Filters EMI/RFI Filters (LC, RC Networks)
Manufacturer		Vishay General Semiconductor – Diodes Division
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		5-XFDFN
Size / Dimension		0.041" L x 0.029" W (1.03mm x 0.73mm)
Mounting Type		Surface Mount
Type		Low Pass
Operating Temperature		-40°C ~ 125°C
Values		R = 60Ohms, C = 90pF
Height		0.011" (0.29mm)
Filter Order		2nd
Applications		Data Lines for Mobile Devices
Technology		RC (Pi)
Center / Cutoff Frequency		60MHz (Cutoff)
Resistance - Channel (Ohms)		60
ESD Protection		Yes
Number of Channels		2
Current		8.5 A

RESOURCE TYPE		LINK
Datasheets		VEMI256A-SD2-G4-08

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
