VEMI45AC-HNH-GS08 _ EMI/RFI Filters (LC, RC Networks)_Filters

Part Number	VEMI45AC-HNH-GS08
Manufacturer	Vishay General Semiconductor – Diodes Division
Other Part Numbers	112-VEMI45AC-HNH-GS08TR-ND 112-VEMI45AC-HNH-GS08CT-ND 112-VEMI45AC-HNH-GS08DKR-ND VEMI45AC-HNH-GS08GITR-ND VEMI45AC-HNH-GS08-ND 112-VEMI45AC-HNH-GS08DKR VEMI45AC-HNH-GS08GICT VEMI45AC-HNH-GS08GITR 112-VEMI45AC-HNH-GS08TR VEMI45AC-HNH-GS08GICT-ND 112-VEMI45AC-HNH-GS08CT
Description	FILTER RC(PI) 100 OHM/13PF SMD
Detailed Description	RC (Pi) EMI Filter 2nd Order Low Pass 4 Channel R = 100Ohms, C = 13pF 2 A 8-UFDFN Exposed Pad
Manufacturer Standard Lead Time	14 weeks

Category		Filters EMI/RFI Filters (LC, RC Networks)
Manufacturer		Vishay General Semiconductor – Diodes Division
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

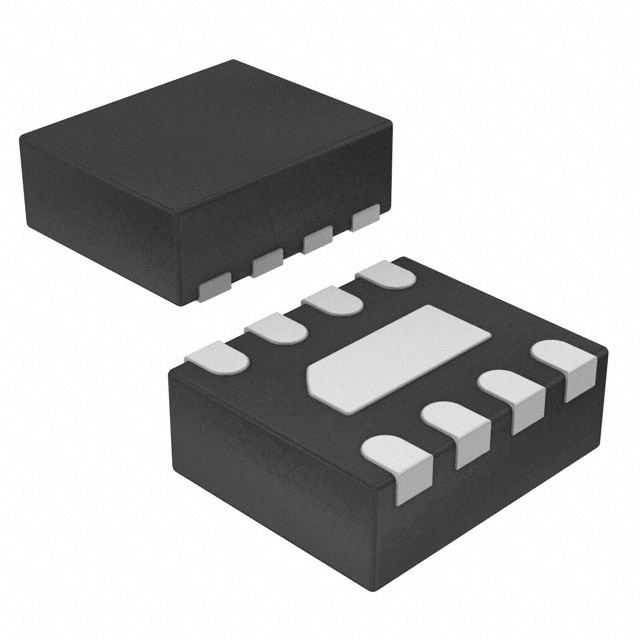

Package / Case		8-UFDFN Exposed Pad
Size / Dimension		0.067" L x 0.053" W (1.70mm x 1.35mm)
Mounting Type		Surface Mount
Type		Low Pass
Operating Temperature		-40°C ~ 125°C
Values		R = 100Ohms, C = 13pF
Height		0.024" (0.60mm)
Filter Order		2nd
Applications		Data Lines for Mobile Devices
Technology		RC (Pi)
Center / Cutoff Frequency		240MHz (Cutoff)
Resistance - Channel (Ohms)		100
ESD Protection		Yes
Number of Channels		4
Current		2 A

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
