VO2611-X017T _ Logic Output Optoisolators_Optoisolators_Isolators

Part Number	VO2611-X017T
Manufacturer	Vishay Semiconductor - Opto Division
Other Part Numbers	VO2611-X017TTR-ND VO2611-X017TCT-ND VO2611-X017TDKR-ND VO2611-X017TCT VO2611-X017TTR VO2611-X017TDKR VO2611-X017T-ND
Description	OPTOISO 5.3KV OPEN DRAIN 8SMD
Detailed Description	Logic Output Optoisolator 10MBd Open Drain 5300Vrms 1 Channel 15kV/µs CMTI 8-SMD
Manufacturer Standard Lead Time	26 weeks

Category		Isolators Optoisolators Logic Output Optoisolators
Manufacturer		Vishay Semiconductor - Opto Division
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

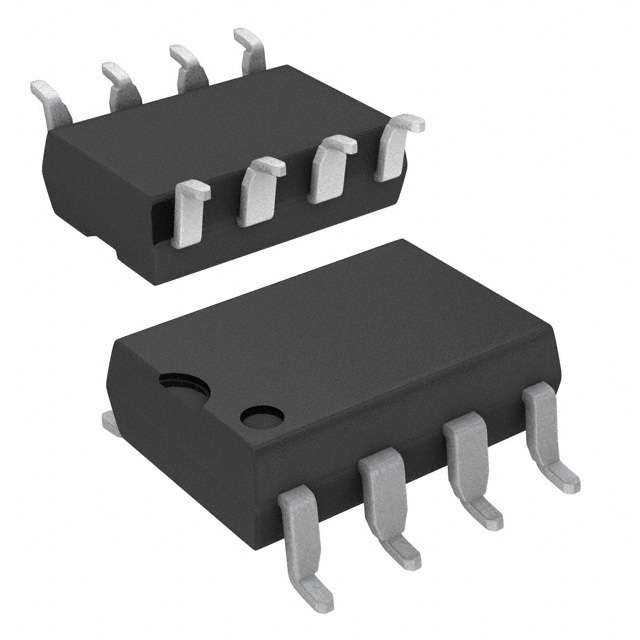

Package / Case		8-SMD, Gull Wing
Output Type		Open Drain
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 100°C
Voltage - Supply		4.5V ~ 5.5V
Voltage - Forward (Vf) (Typ)		1.4V
Data Rate		10MBd
Input Type		DC
Voltage - Isolation		5300Vrms
Current - DC Forward (If) (Max)		20mA
Inputs - Side 1/Side 2		1/0
Supplier Device Package		8-SMD
Rise / Fall Time (Typ)		23ns, 7ns
Common Mode Transient Immunity (Min)		15kV/µs
Propagation Delay tpLH / tpHL (Max)		100ns, 100ns
Number of Channels		1
Current - Output / Channel		50 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
