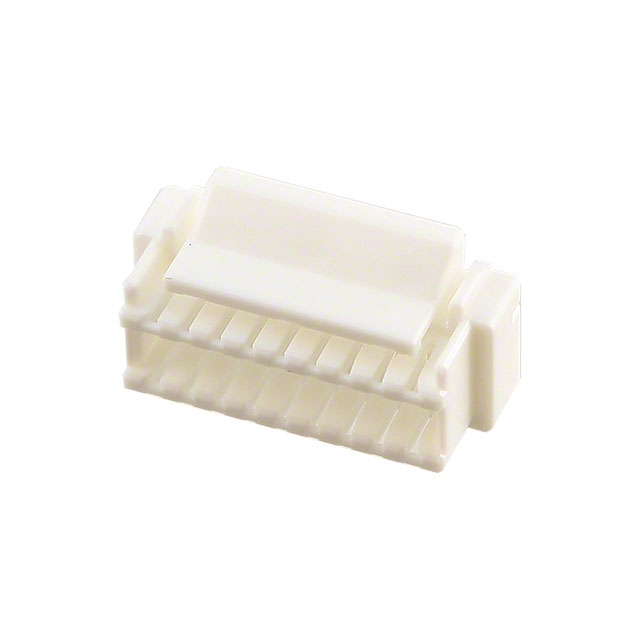

ZPDR-18V-S

ZPDR-18V-S

Part Number	ZPDR-18V-S
Manufacturer	JST
Other Part Numbers	455-2532-ND 455-2532 ZPDR18VS
Description	CONN RCPT HSG 18POS 1.50MM
Detailed Description	18 Rectangular Connectors - Housings Receptacle Natural 0.059" (1.50mm)
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Rectangular Connectors Rectangular Connector Housings
Manufacturer		JST
Series		ZPD
Packaging		Bulk
Part Status		Active
Connector Type		Receptacle
Contact Termination		Crimp
Color		Natural
Mounting Type		Free Hanging (In-Line)
Number of Positions		18
Pitch		0.059" (1.50mm)
Operating Temperature		-25°C ~ 85°C
Contact Type		Female Socket
Fastening Type		Latch Lock
Note		Contacts Not Included
Insulation Material		Polybutylene Terephthalate (PBT)
Number of Rows		2

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ZPDR-18V-S
Datasheets		JST Prefix Suffix Chart
Product Training Modules		ZPD Connector Series
Featured Product		ZPD Series Connectors

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8538.90.6000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 4423

Can ship immediately.
