Analog Switches, Multiplexers, Demultiplexers

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Mounting Type	Operating Temperature	On-State Resistance (Max)	-3db Bandwidth	Supplier Device Package	Voltage - Supply, Single (V+)	Voltage - Supply, Dual (V±)	Charge Injection	Crosstalk	Switch Circuit	Multiplexer/Demultiplexer Circuit	Channel-to-Channel Matching (ΔRon)	Switch Time (Ton, Toff) (Max)	Channel Capacitance (CS(off), CD(off))	Current - Leakage (IS(off)) (Max)	Grade	Number of Circuits	Qualification
MAX4694EBE+ SPDT, 4 FUNC, 1 CHANNEL, CMOS, P Maxim Integrated / Analog Devices Datasheet	2,030 Marketplace	115 : $300.15 Bulk	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CD4066BD3 IC QUAD BILATERAL SWITCH 14CDIP Harris Corporation Datasheet	23 Marketplace	23 : $305.44 Bulk	4000B	Bulk	Active	14-CDIP (0.300", 7.62mm)	Through Hole	-55°C ~ 125°C (TA)	240Ohm	40MHz	14-CDIP	3V ~ 18V	-	-	-	SPST	1:1	5Ohm	-	8pF	-	-	4	-
IH5144MJE IC SWITCH SPSTX1 50OHM 16CERDIP Harris Corporation Datasheet	249 Marketplace	36 : $300.60 Bulk		Bulk	Active	16-CDIP (0.300", 7.62mm)	Through Hole	-55°C ~ 125°C	50Ohm	-	16-CERDIP	15V	±15V	10pC	-	SPST	1:1	25Ohm	175ns, 125ns	-	500pA	-	1	-
MAX339EGE IC SW SP4T-NO/NCX2 400OHM 16QFN Maxim Integrated / Analog Devices Datasheet	385 Marketplace	258 : $299.28 Bulk		Bulk	Active	16-VQFN Exposed Pad	Surface Mount	-40°C ~ 85°C (TA)	400Ohm	-	16-QFN (4x4)	4.5V ~ 30V	±4.5V ~ 20V	1.5pC	-92dB @ 100kHz	SP4T - NO/NC	4:1	4Ohm	500ns, 500ns	3pF, 6pF	20pA	-	2	-
DG180AA/883B IC SW SPST-NCX2 10OHM TO100-10 Harris Corporation Datasheet	86 Marketplace	20 : $315.60 Bulk		Bulk	Active	TO-100-10 Metal Can	Through Hole	-25°C ~ 125°C	10Ohm	-	TO-100-10	15V	±15V	-	-	SPST - NC	1:1	-	300ns, 250ns	9pF, 6pF	100nA	-	2	-
DG202CJ IC SWITCH SPST-NCX4 200OHM 16DIP Intersil Datasheet	3,293 Marketplace	96 : $300.48 Bulk		Bulk	Active	16-DIP (0.300", 7.62mm)	Through Hole	0°C ~ 70°C	200Ohm	-	16-PDIP	15V	±15V	20pC	-90dB @ 100kHz	SPST - NC	1:1	-	480ns (Typ), 370ns (Typ)	5pF, 5pF	5nA	-	4	-
4052BDM MULTIPLEXERS/SWITCHES National Semiconductor Datasheet	942 Marketplace	94 : $300.80 Bulk		Bulk	Active	16-CDIP (0.300", 7.62mm)	Through Hole	-55°C ~ 125°C	-	-	16-CDIP	-	-	-	-	-	-	-	-	-	-	-	-	-
MAX4510EUT R-R SPST ANALOG SWITCH Maxim Integrated / Analog Devices Datasheet	5,980 Marketplace	143 : $300.30 Bulk		Bulk	Active	SOT-23-6	Surface Mount	-40°C ~ 85°C (TA)	160Ohm	-	SOT-6	9V ~ 36V	±4.5V ~ 20V	1.5pC	-	SPST - NC	1:1	-	500ns, 175ns	10pF, 5pF	500pA	-	1	-
DG308ABK IC SW SPST-NCX4 100OHM 16CERDIP Harris Corporation Datasheet	1,058 Marketplace	80 : $303.20 Bulk		Bulk	Active	16-CDIP (0.300", 7.62mm)	Through Hole	-55°C ~ 125°C	100Ohm	-	16-CERDIP	15V	±15V	-10pC	-	SPST - NC	1:1	-	200ns, 150ns	11pF, 8pF	5nA	-	4	-

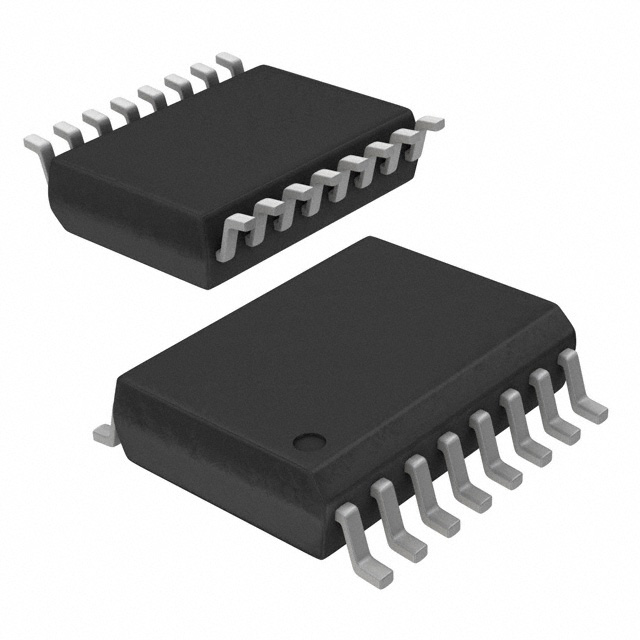

DG212CY-T IC SW SPST-NOX4 175OHM 16SOIC Maxim Integrated / Analog Devices Datasheet	2,200 Marketplace	171 : $300.96 Bulk		Bulk	Active	16-SOIC (0.154", 3.90mm Width)	Surface Mount	0°C ~ 70°C	175Ohm	-	16-SOIC	-	±4.5V ~ 18V	-	-90dB @ 100kHz	SPST - NO	1:1	-	1µs, 500ns	5pF, 5pF	5nA	-	4	-
